Crosscall Trekker M1-Core Battery Replacement

Geschrieben von: FlorianD
  • Kommentare: 5
Crosscall Trekker M1-Core Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

45 Minuten

Einleitung

Is your battery draining too fast? It no longer holds a charge? This tutorial will show you how to remove the old battery from your smartphone and replace it with a new one.

Crosscall does not provide spare parts on its older models, so you will have to find this battery yourself.

If you use another battery model, check that the connectors, dimensions and position of the power supply wire are correct.

Before disassembling your phone, discharge the battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

  1. bWEILUmYQoMYARYm

    • Attention: Please turn off your phone before any disassembly.

    • Unscrew the 2 flat head screws from the SIM card cover.

    • The 2 screws are captive: lift the cover using the slots on the sides to remove the assembly.

  2. 6kCu2DtOlRftDCAu
    6kCu2DtOlRftDCAu
    61KEQMo4YQB6jUvm
    B1rUcIqIXyAL5OqE

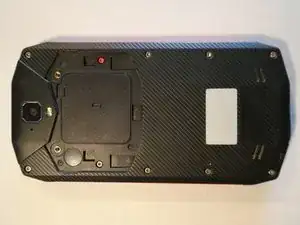

    • Remove the 10 hexagonal screws.

    • One of the 2 screws located under the SIM card cover has a cover that will need to be pierced with the tip. This may invalidate the manufacturer's warranty.

    • These 10 screws are the same length and are interchangeable with each other.

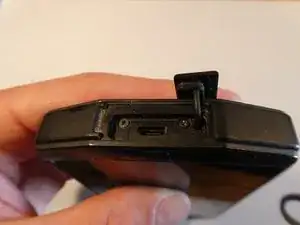

    • Open the waterproof cap of the USB socket and remove the 2 Phillips screws (see photo 2).

    • Open the waterproof cap of the earphone socket and remove the Phillips screw (see photo 3).

    • Lift the rear panel which should come without forcing.

  3. CY4xHMI6Ho2fKpyi
    CY4xHMI6Ho2fKpyi
    sYrCWV1obSbPBQk2

    • You can take advantage of this step to check the condition of the red seal and dust it if necessary.

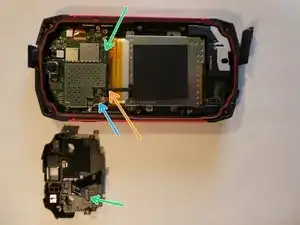

    • Unscrew the four (4) Phillips screws to release the black plate supporting the SIM card.

    • Gently lift this black plate and release the connector with the flat end of a spudger. (The connector is visible in photo 2 when the black plate is separated from the device)

    • The battery connector (blue arrow) and the NFC connector (orange arrow) are now accessible.

  4. sKSjP3TLthANnCHM
    sKSjP3TLthANnCHM
    LknjxfYTB1Q5YUOA

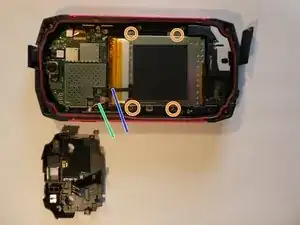

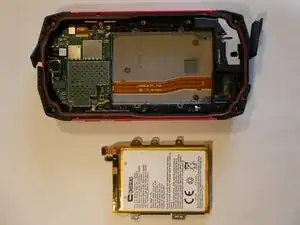

    • Unscrew the metal plate protecting the battery (4 Phillips screws).

    • Do not mix these screws with the 4 screws from the previous step; their length is different.

    • Two plastic cleats are inserted into the sheet. Check that they are inserted correctly during reassembly.

    • Disconnect the battery connector with the flat end of a spudger (use a plastic spudger to avoid a short circuit).

    • Lift the metal plate stuck to the battery (to extract it) and gently pull on the NFC sensor socket (you have to pull towards the bottom of the device to disconnect it).

  5. snnX2skHybLPgxqQ

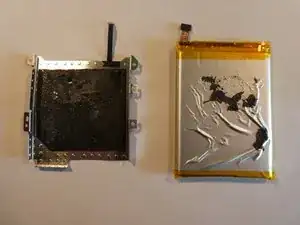

    • With the battery separated from the smartphone, remove it from the metal plate with a suitable solvent

    • In the absence of solvent, it is possible to remove the battery with a hair dryer and a metal spudger.

    • Warning: Heating the battery may degrade its performance. Do not use a hair dryer if you want to reuse the battery.

    • Be careful not to bend or puncture the battery during this procedure: A damaged flexible lithium-ion battery may leak dangerous chemicals and can catch fire and even explode!

    • Insert the new battery.

    • Connect the connector for the power supply using a plastic spudger.

    • Replace the metal plate and slide the NFC sensor connector into its socket.

    • Insert the 4 screws that tighten the metal plate.

Abschluss

To reassemble your device, follow the instructions in reverse order.
