Having problems powering-up your Cuisinart coffee-maker? Follow these instructions on how to replace Cuisinart CHW-12 power cord. This repair will only fix power issues directly related to the power cord. If the cord has been disconnected from the circuit board or severed a new power cord will be required to fix the issue. To successfully complete this guide you will need to know how to solder.
Werkzeuge
-
-
Unplug the coffee-maker from the power source.
-

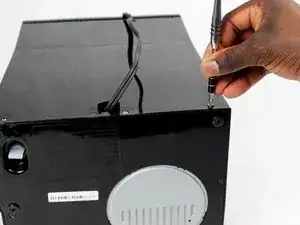

Use a Phillips head screwdriver to remove the four 7mm screws from the back and the three 8mm screws from the bottom. This will release the bottom cover.
-
-
-

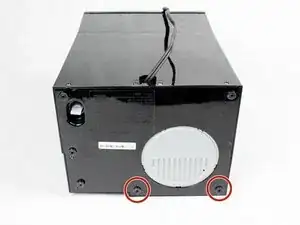

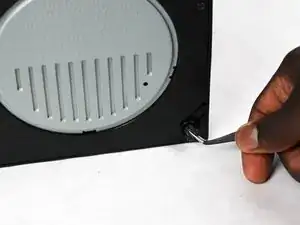

Use tweezers to remove the two rubber feet marked within the provided pictures.
-
Remove both 8mm Phillips head screws found within the holes where the feet were just removed.
-
-
-

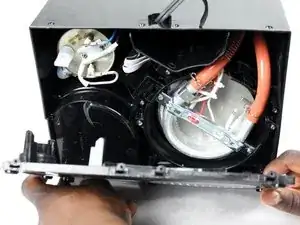

Carefully pull the cover off the bottom of the coffee maker. This will give you access to the inside of the coffee maker.
-

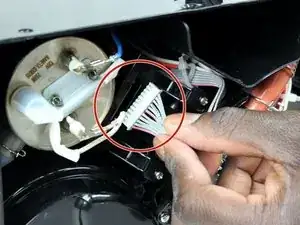

Pull the gray ribbon cable strait out of the black containment box.
-
-
-

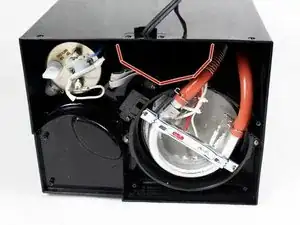

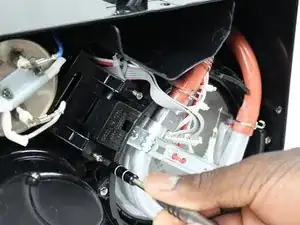

Locate the Phillips head screws holding the highlighted plastic shield in place.
-

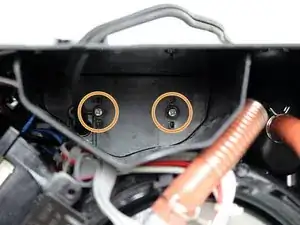

Remove the two 14mm screws with a Phillips head screwdriver.
-

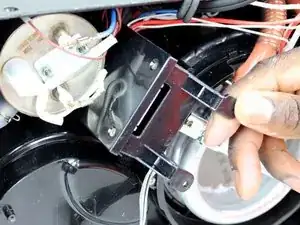

Carefully slide the shield out of place along the power cord and set it aside.
-
-
-

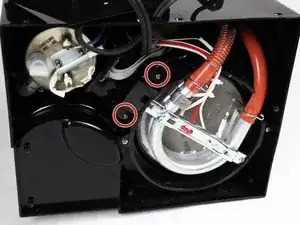

Remove the two 14mm Phillips head screws securing the plastic containment box.
-

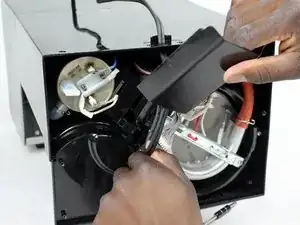

Pull the plastic containment box straight out of the coffee maker.
-
-
-

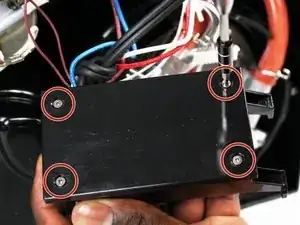

Remove the four 11mm Phillips head screws in each corner of the plastic containment box.
-
Pull the top from the plastic housing.
-
-
-

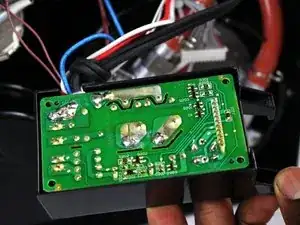

Pull the circuit board out of the containment box.
-

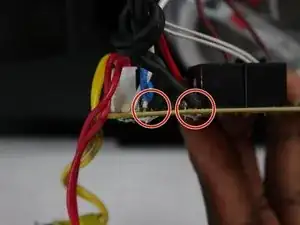

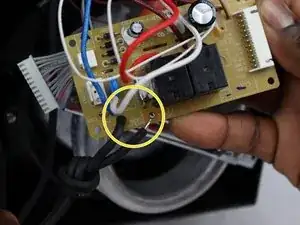

Locate the power cable connection point on the circuit board.
-

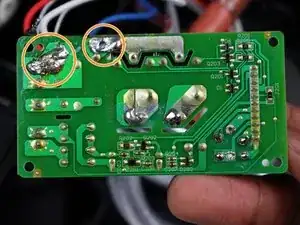

Desolder the power cable wires connected to the board.
-
Replace the power cable with the corresponding wires of the new power cable.
-
To reassemble your device, follow these instructions in reverse order.
