Cuisinart CPT-140BK Circuit Board Replacement

Geschrieben von: Liya Zulfiquar
  • Kommentare: 0
Cuisinart CPT-140BK Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This guide will explain how to replace Cuisinart CPT-140BK toaster circuit board. It instructs through the process of disassembly to prevent damage on display cables and panels.

  1. C6HBnMOXvZNNUmXa

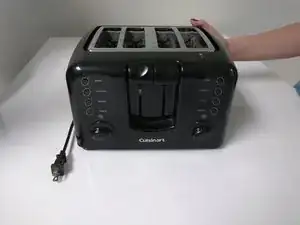

    • Unplug the toaster before disassembly.

  2. O3bwwVe6ZoQ1CJVK
    O3bwwVe6ZoQ1CJVK
    oBgBp1QecXS11iCD

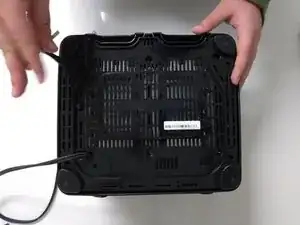

    • Turn the toaster upside down.

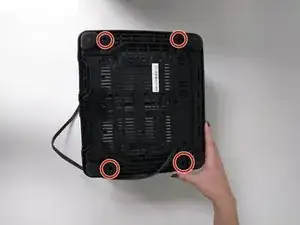

    • Unscrew all 4mm screws using Phillips #2 screwdriver.

  3. JN1rO2KUTLSOnpI6

    • Turn the toaster right side up.

    • Lift up the front cover carefully because the cables can be damaged.

    • Pull out the toaster lever knobs by pulling it away from the toaster before removing the top cover.

  4. NTYZUvZjyvHwYLVC
    NTYZUvZjyvHwYLVC
    T3pyE4RlySsGu3In
    M1cWG1nlFS1QT5Oa

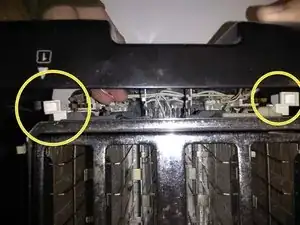

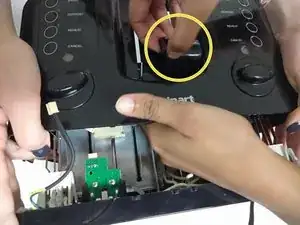

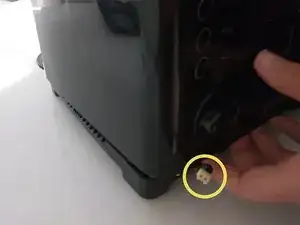

    • Detach the cable that connects the toaster to the circuit board, in both control panels.

  5. UGLaZ2lZMtOa1UnY

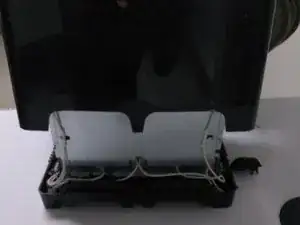

    • Carefully lift up the top cover.

  6. MHRJxGALUcmPVtc6
    MHRJxGALUcmPVtc6
    kCAJwEX2kmHGXHMh
    TUo63lAMunGLsloh

    • The circuit board is located inside the front cover.

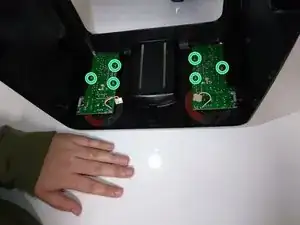

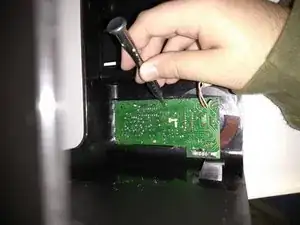

    • Unscrew total of six 4mm screws that attach each circuit board to the top cover, using Phillips #2 screwdriver.

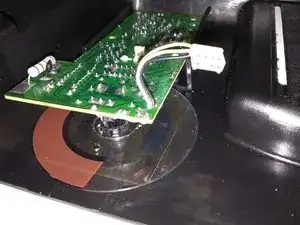

    • Remove and replace the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
