Einleitung
This guide will show you how to replace the display and will require soldering.
-
-

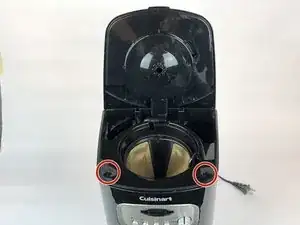

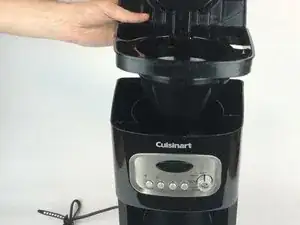

Open the lid of the coffee pot.
-

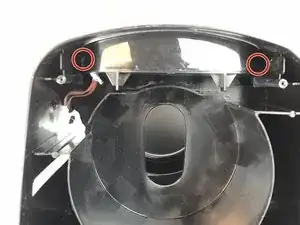

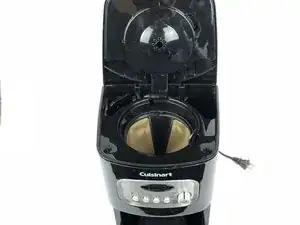

Remove the two 1.6mm Phillips #1 screws from inside of the lid.
-
-
-

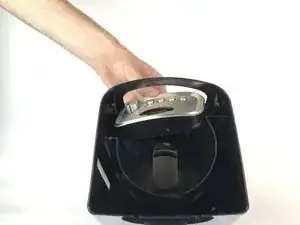

Slide the display into the coffee maker so that way you can access the screws in the back.
-

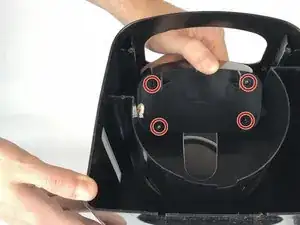

Remove the four 1mm Phillips #0 screws from the back of the display.
-
-
-

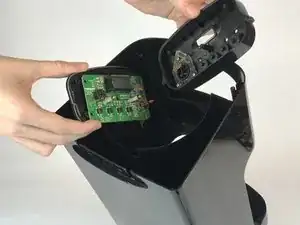

Remove the back panel from the display.
-

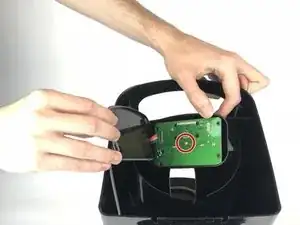

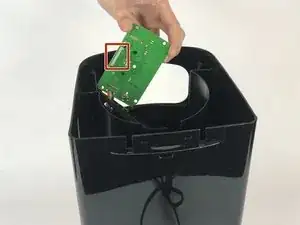

Remove the 1mm Phillips #0 screw from the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
