Cuisinart DCC-1100 Drip Spring Replacement

Geschrieben von: Josh Harvey
  • Kommentare: 6
Cuisinart DCC-1100 Drip Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 Minuten

Einleitung

This replacement guide will help you get through all of the top pieces such as the filter element to get to the drip spring. It is possible for this spring to break causing issues with the drip function or rust possibly causing a strange taste.

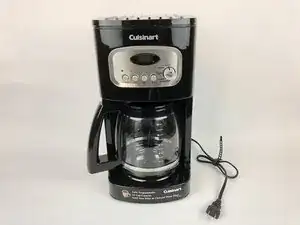

  1. lND62MUmRy5fNpoF

    • Unplug the coffee maker.

  2. qnbFOBv2dqiFXxrx

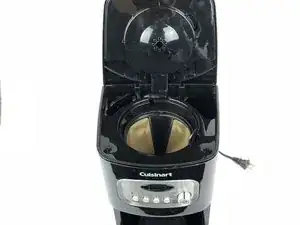

    • Remove the coffee pot and open the top lid.

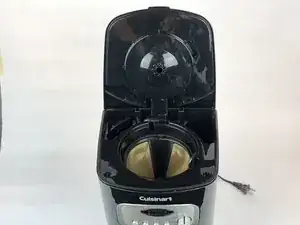

  3. QVxW6SorNQMrNPOF
    QVxW6SorNQMrNPOF

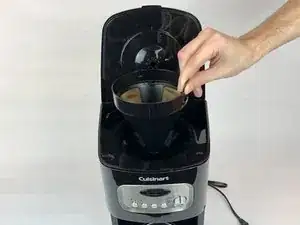

    3MZO12OwXmSKkIUW

    • Remove the basket filter holder.

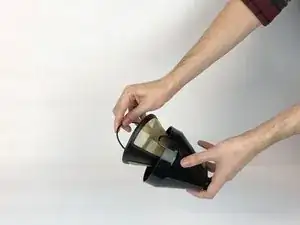

  4. U2vRBxZoetJ1RJXj

    • Remove the basket filter from the holder.

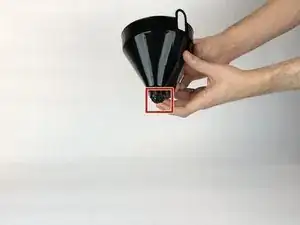

  5. 4MXdvU2VXdvGAUnx

    • Press up on the drip spring mechanism.

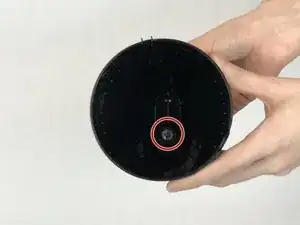

  6. UiwhXksOMYkpUbGB
    UiwhXksOMYkpUbGB

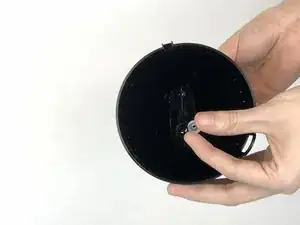

    Hjym2FxNIilq6hEl

    • While pressing up on the drip spring mechanism, remove the clear round plastic retainer holding the mechanism in place.

    Where can I purchase a replacement for that small gasket that holds the plunger in place

    Debra Auman -

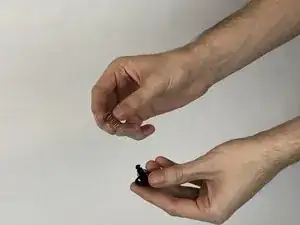

  7. RrDQRtJEMwMygEdA

    • Remove the spring from the dripper.

    I have Cuisinart's Grind & Brew machine and it has an identical drip plug assembly. My problem was not knowing how to replace this spring, but having lost it and needing to find a suitable spring to replace. There are several spring specialty websites, but the one that had the item I needed had a $40 minimum. I measured carefully with a caliper and arrived at this spring size: 12 mm OD, 0.5 mm wire diameter, 30 mm free length. https://www.amazon.com/uxcell-0-5mmx12mm...

    Chris Rockett -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Josh Harvey

Mitglied seit: 25/01/18

886 Reputation

4 Kommentare

Where do you find replacement springs?

Mrich -

I have Cuisinart's Grind & Brew machine and it has an identical drip plug assembly. I measured carefully with a caliper and arrived at this spring size: 12 mm OD, 0.5 mm wire diameter, 30 mm free length. https://www.amazon.com/uxcell-0-5mmx12mm...

Chris Rockett -

My basket holder has thrown off the clear plastic retainer ring; is there a replacement part I can purchase?

Raymond Classen -

When the basket holder came apart - the clear plasted retainer ring came off of mine, also. Can you just purchase this piece?

ncrenshaw4 -
