In this guide you will learn how to replace the Cuisinart DCC-1100 Heating Element if you are having issues with the device heating up. Please have a replacement heating element ready and potentially extra thermal paste. Also unplug the machine before beginning work.
-
-

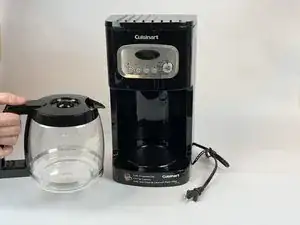

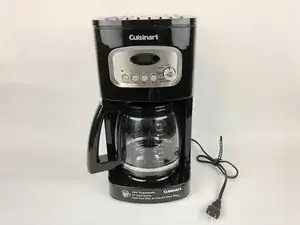

Remove the coffee pot and unplug the maker.
-

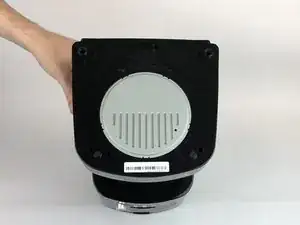

Flip the coffee maker over so that way the bottom is facing you.
-
-
-

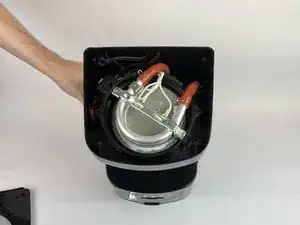

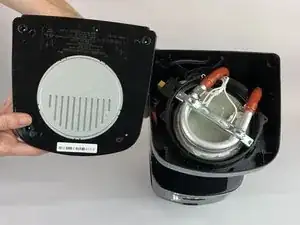

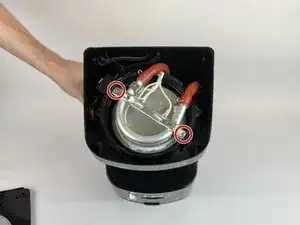

Remove the two 1.6mm Phillips #0 screws from the heating element.
-

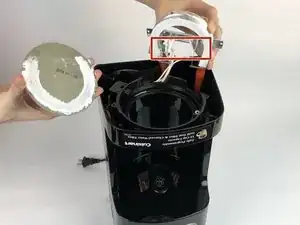

Lift up the heating element and remove the hot plate.
-
-
-

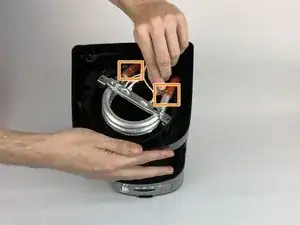

Disconnect the heating element.
-

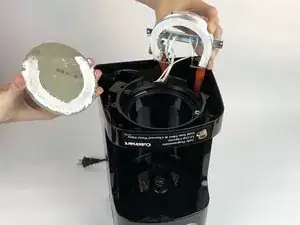

Pinch the tube clips and remove from tubes from the heating element.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
