Cuisinart DCC-1100 Hot Plate Replacement

Geschrieben von: Josh Harvey
  • Kommentare: 13
Cuisinart DCC-1100 Hot Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will help you replace the hot plate of the Cuisinart DCC-1100. Please have a replacement hot plate ready for the installation and unplug the machine before beginning work.

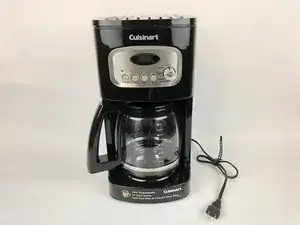

  1. eyNNydI5olpLuWrB

    • Unplug the coffee maker.

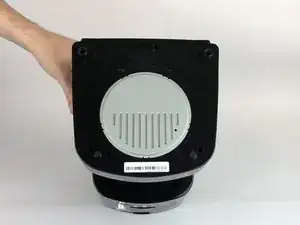

  2. sMtonudtA62DKnoq

    • Remove the coffee pot and place the coffee maker upside down.

  3. CIXYXWKSynYj1CZc

    • Remove the five 1.6mm Phillips #1 screws from the bottom panel.

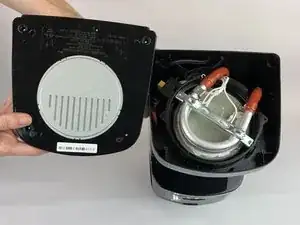

  4. 1tTVgAOwISWn5ljC

    • Remove the bottom panel.

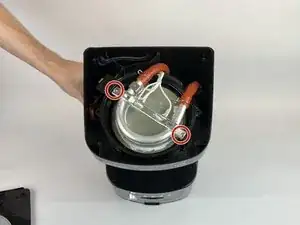

  5. yLAUxgouBhuCjZTn

    • Remove the two 1.6mm Phillips #0 screws from the retaining bracket on the heating element.

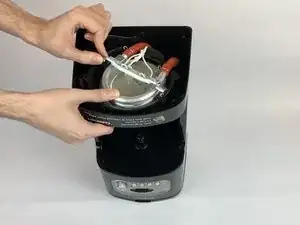

  6. fmoqItSndJycbSaV

    • Remove the retaining bracket and allow it to hang off of the heating element.

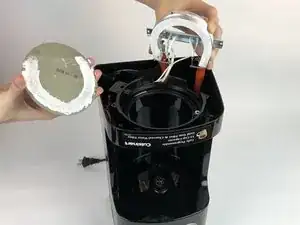

  7. tYqnhy4TDxvuFLdC

    • Remove the hot plate from the heating element.

    • New thermal paste should be applied at time of installation.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Josh Harvey

Mitglied seit: 25/01/18

886 Reputation

13 Kommentare

thank you for this informative display.

I have broken many expensive glass carafs for my cuisinart coffeemaker and finally purchased a cuisinart thermal caraf.

I do not need the hotplate to heat, so what do I do to stop the heating process?

I imagine I would need to remove one of the attached lines to the heating element, yes?

Thanks.

Luciano

luciano1213@msn.com

Luciano Muzzatti -

Hi, Thanks for sharing this information. I have an older Krups coffee maker that still works great but the hot plate is warn. I cannot seem to find a replacement plate for any Krups coffee maker models. Any suggestions? Thanks!

Paulette Paglia -

Josh

where do I buy the replacement hot plate?? I have the sis 15 coffeemaker and I have googled all over the place?? Thank u

linkev428 -

Yes, where do you buy the part??

Kathy Johnston -

Yes my question is where do you get the new hot plate? Any direction appreciated.

DougB -

I replaced hot plate with a stainless steel disk bought on Amazon 1/8” thick and 4 1/2” diameter $5 plus shipping. Works a charm.

Peter -

Thanks--great tip! Did you use thermal paste? What is it--the heat sink compound used in PCs, or something else? Thanks!

Jan Pendleton -

where do i buy thermal paste?

jeanna -

where do i buy thermal paste? and the security screw driver?

jeanna -

Nice instructions.

Where do you buy the part/heating plate? I am a good googler. I cannot find a coffee maker heatplate.

Thanks

vizios5vizios5vizios5@gmail.com

fixroxie -

What is thermal paste? Is it the same substance used in PCs as a heat sink?

Jan Pendleton -

My question as well, where do you find the CORRECT hotplate for Cuisinart SS-15P1???

Mouse -

Did you get response w/ information? I also need same to replace my Cuisinart hot plate. Kindly provide. Thanks

P Colbert -
