Einleitung

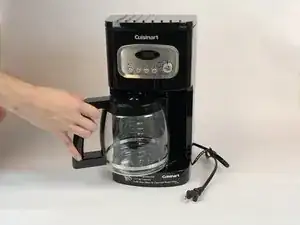

This guide will help you with replacing the power cord if your device is not receiving power.
The replacement will require a soldering iron.
-
-

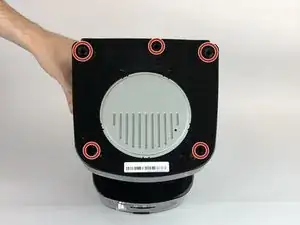

Remove the two 1.4mm Phillips #0 screws from the plastic protection plate.
-

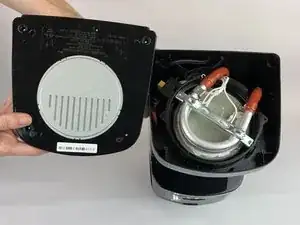

Remove the plastic protection plate.
-
-
-

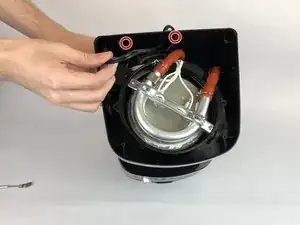

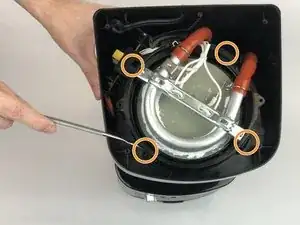

Remove the two 1.6mm Phillips #1 screws from the heating element.
-

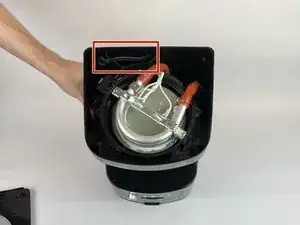

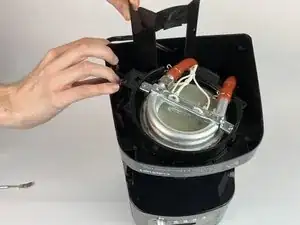

Using a flathead screwdriver to remove the outer clips holding the heating unit in place.
-

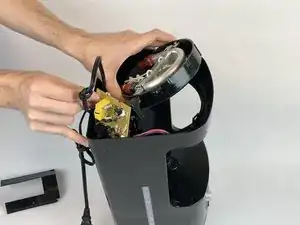

Flip the heating element up to allow access to the circuit board.
-
-
-

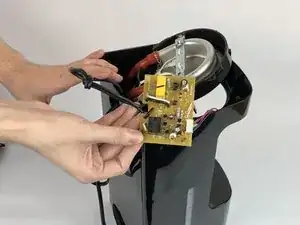

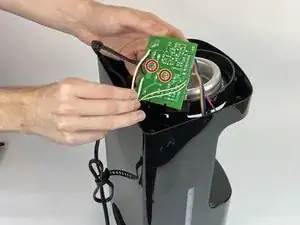

Pull out the circuit board and rest it on the side of the machine.
-
Desolder the power cable from the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
