Cuisinart DCC-1100 Selection Knob Replacement

Geschrieben von: Josh Harvey
  • Kommentare: 1
Cuisinart DCC-1100 Selection Knob Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

This guide will help you replace the selection knob of the Cuisinart DCC-1100. Please have a replacement knob ready and unplug the machine before beginning work.

  1. IahKogTLrYv6MBEY
    IahKogTLrYv6MBEY
    2QW1VkVpGa3OMH3k

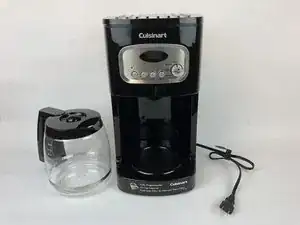

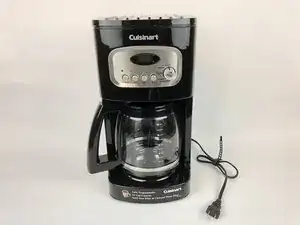

    • Remove the coffee pot.

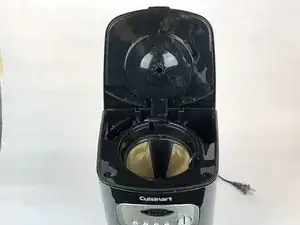

  2. EXJox1hy5kKVN3VZ
    EXJox1hy5kKVN3VZ
    VvIXRIRnilUdTayK

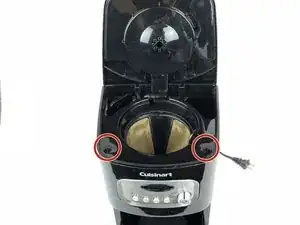

    • Open the lid.

    • Remove the two 1.6mm Phillips #1 screws from the lid.

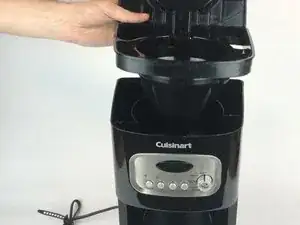

  3. OUGMWNArmXYMEXRr

    • Remove the lid from the coffee maker.

    The lid won’t come off at this stage. It’s stuck around where the lid pivots. Is there any other step in-between to remove the lid?

    Vivek -

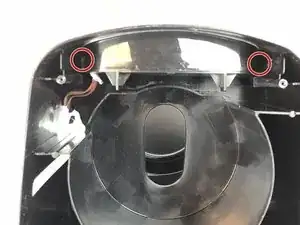

  4. NBUPrMQZyKMIisbl

    • Remove the two 1.3mm screws from the display.

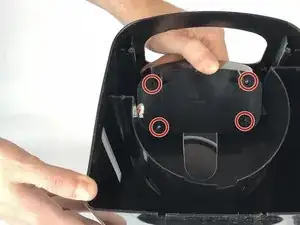

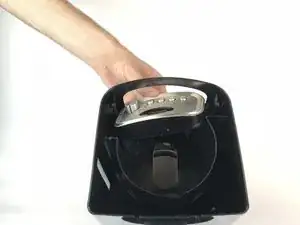

  5. JCJIKXJSDmnXCquy
    JCJIKXJSDmnXCquy
    fsFQqFekQF1SBspq

    • Push the display into the maker so that way you can access the screws in the back.

    • Remove the four 1mm Phillips #0 screws from the back.

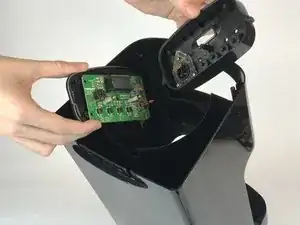

  6. AAWgkloVZrPOqVIX
    AAWgkloVZrPOqVIX
    DnTGPrOGRMrHIxOk

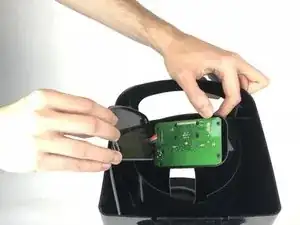

    • Remove the back panel.

    • Remove the front panel from the display.

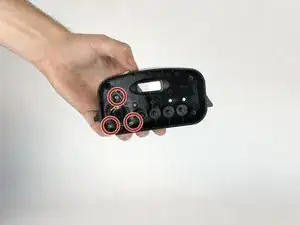

  7. S1eXCVwylUSAGrKD

    • Remove the three 1mm Phillips #0 screws from the knob.

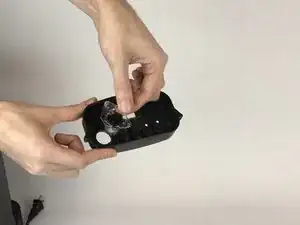

  8. QN42ckCOxiTrduFE

    • Remove the knob from the front panel.

  9. RJXNhcSJiUnsGfsq

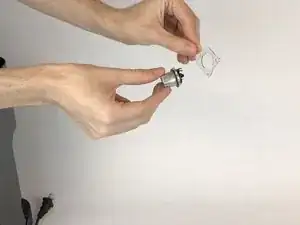

    • Remove the plastic ring from the knob.

Abschluss

To reassemble your device, follow these instructions in reverse order.
