Cuisinart DCC-1200 Coffee Carafe Handle Replacement

Geschrieben von: Austin Wheaton
  • Kommentare: 2
Cuisinart DCC-1200 Coffee Carafe Handle Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Is the handle on the carafe of your Cuisinart coffee maker lose or damaged? If so, this guide will provide instructions on how to replace the handle on the carafe. To complete this task all you will need is a bit driver with the PH1 Phillips bit.

  1. DDC2jYlToMSo6Ie2
    DDC2jYlToMSo6Ie2
    FHujKfZMJpeEAQTf
    jjWNFUHa3CjBIElE

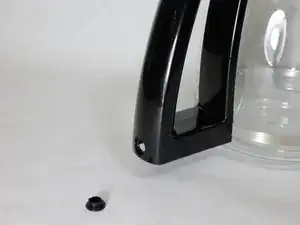

    • Wedge the metal spudger between the plug and the handle.

    • Carefully pry the plug with the metal spudger by applying pressure around the plug.

    • Too much pressure and prying can damage the plug.

  2. 1JFCEdPnqYhoSJQo
    1JFCEdPnqYhoSJQo
    T1Ye2BhEiSXEMf1g

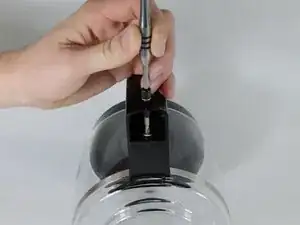

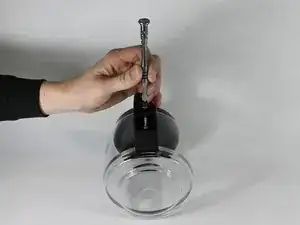

    • Use the bit driver with the Phillips PH1 bit to remove the 27 millimeter long screw in the base of the handle.

  3. nFtvIkiaYt5lGWoF

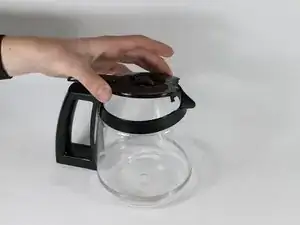

    • Lift up on and remove the lid from the carafe.

  4. tQNGnGLFfHfwFkjY
    tQNGnGLFfHfwFkjY
    GTs21p61WnTsKrRS

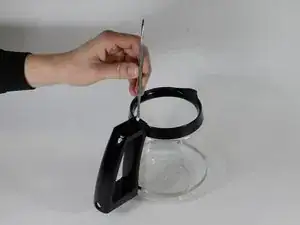

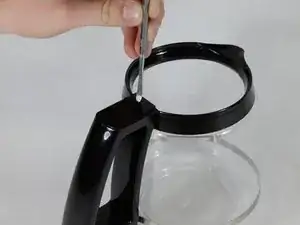

    • Position the metal spudger underneath the top cap of the handle.

    • Gently pry up to extract the upper assembly cap.

    • Pry carefully to prevent from causing aesthetic damage to upper assembly cap.

    The contrast is poor here, but now that I have the cap off, I know that no spudger I have would fit there anyway. Instead I inserted a metal kebab skewer (shut up, I was in the kitchen ;) ) in the bottom of the handle, ring/handle first, and used that to push outwards/upwards on the top cap. That raised it up a bit and gave me a gap in which I could fit a spudger to pry it off.

    Max -

  5. DdLMQ2F5RKgJfdKD

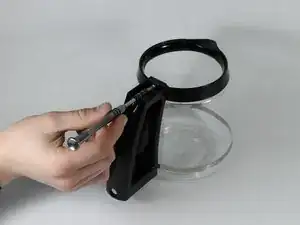

    • Use the bit driver with the Phillips PH1 to remove the 5 millimeter screw in upper assembly of handle.

    • Remove handle by lifting straight up.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Austin Wheaton

Mitglied seit: 15/02/18

804 Reputation

Ein Kommentar

I needed this guide after my spouse put the carafe in the dishwasher and the handle sloshed no matter how much I shook it. It turns out water is easily trapped under the top cap; even though there's a drain hole into the handle, it doesn't seem to want to drain. I've wiped it off and left it to dry completely before reassembling it.

Max -
