Cuisinart DFP-14BCN Buttons Replacement

Geschrieben von: Sonya Dick
  • Kommentare: 2
Cuisinart DFP-14BCN Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will show you how to remove the buttons on your food processor and replace them if they are damaged. This guide only requires the use of a screwdriver and nut driver, but gives you a look at the inside of your food processor.

  1. OFO5SRinoVokGvoK
    OFO5SRinoVokGvoK
    jsxBPIw2MoOSiu4A
    kSWShXMUwwDUSSkA

    • Unplug your food processor before starting any disassembly.

    • Remove the small pusher by rotating it clockwise and lifting up.

  2. THlyFpesCnWRLVqS

    • Remove the large pusher by grabbing its sides and pulling up.

    • There may be a clicking sound from the safety feature being disengaged in this step.

    The little white thing that pushes down broke

    Mr. potato -

  3. QAlfxHf4WNryKUD6
    QAlfxHf4WNryKUD6
    gUVCoPwJhgnVIpBE
    laBrJrkuhbPEbFpL

    • Remove the lid from the bowl by turning it clockwise and lifting.

  4. npb3Nb6GaDKdwpyq

    • Take out the blades by grabbing the plastic center piece and lifting up.

    • Avoid contact with blades as they are extremely sharp.

  5. AdOX2PUUHSe5C3FQ
    AdOX2PUUHSe5C3FQ
    duKHZZcYPFJLQtMx
    Da3UfggLQGgGpnMY

    • Position the handle of the bowl so that it is on your left.

    • Grab the handle and push clockwise. Lift up the bowl to remove it.

    It seems so simple and obvious. Thanks for your help!!!

    Carrie Shirley -

  6. PSQoMWypXxqWV6AC
    PSQoMWypXxqWV6AC
    1QcruKNcLAwQsDJF

    • Turn the food processor's base upside down by lifting it up and turning it over.

    • Position the base so that the on and pulse buttons are facing you.

    • Place the base on top of the food processor's bowl to keep the base from wobbling while you work on it.

  7. BfhJEjwPcr1gTQvY
    BfhJEjwPcr1gTQvY
    K5E32dtH5bPTtvXv

    • Remove the two 13.0mm screws that hold down the casing with a Phillips #2 screwdriver.

  8. aPOjkR2jPMqMCZUU
    aPOjkR2jPMqMCZUU
    Cjtf5nnUEZ1OtWpP
    qQhspumpCuTk5Yg1

    • Lift up the front left and the back right rubber feet by pulling back the rubber with your fingers.

    • Remove the 13.0mm screw under each rubber foot with a Phillips #2 screwdriver.

  9. WhmudNRONIAJsVGf
    WhmudNRONIAJsVGf
    GkDwooTY1aXQ3uaA

    • Lift off the back casing by raising it upward.

  10. LLxySbGMymuIH6ax
    LLxySbGMymuIH6ax
    XCMuJmNJHQXfscoR
    ChiMJeYQLHLNNyMf

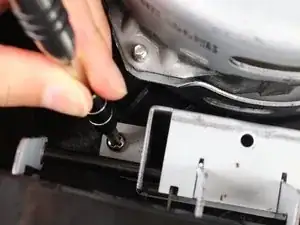

    • Remove the two 13.0mm screws that are holding down the button assembly using the Phillips #2 screwdriver.

  11. LyMMqce3EJ2A4LNP
    LyMMqce3EJ2A4LNP
    yc3XnnSMJMlFDfdQ

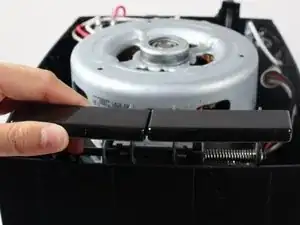

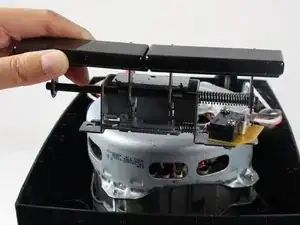

    • Lift out the button assembly by pulling up.

  12. yhyGfWCA1kT5fDRu

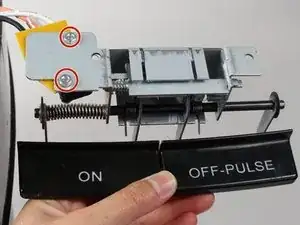

    • Remove the two 5.5mm nuts with a 5.5mm nut driver.

  13. ABK5SyiaZhJbWVsr
    ABK5SyiaZhJbWVsr
    i5LGrfQUnqddBYIr
    FRYIDD6AdoeMk2xt

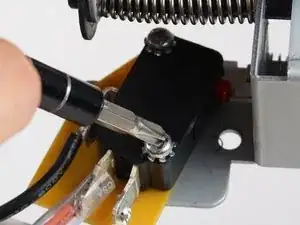

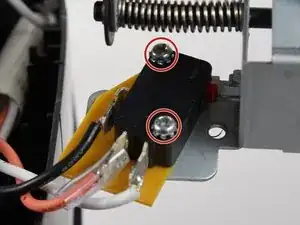

    • Remove the two 13.0mm screws that hold the switch to the button assembly with a Phillips #2 screwdriver.

    • The screws have glue in their threads, so this step might require a little extra force.

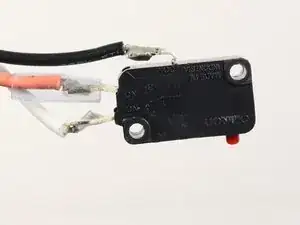

    • Slide off the switch and yellow plastic to remove the button assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
