Cuisinart DLC-10S Pro Classic 7-Cup Food Processor Internal Wiring Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. FZOBMEfHgRFL2Aqh

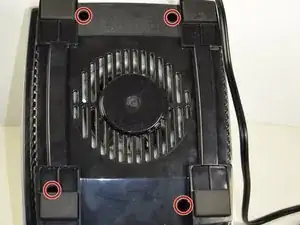

    • Remove the four screws from the bottom of the processor with a Philips Screwdriver.

  2. RJZSJD1ZmhNddJDm

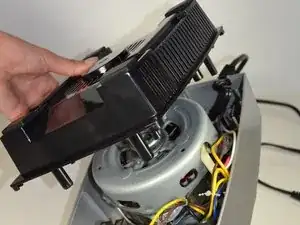

    • Remove the bottom casing of the processor.

  3. DaFCoPXgAHe2hpmX

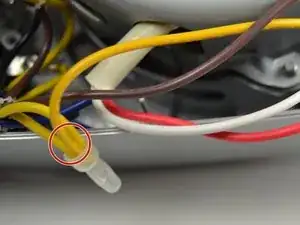

    • If any wires are frayed, cut them off where they are connected by wire nuts.

  4. jQBktCWIKTwCvHPq

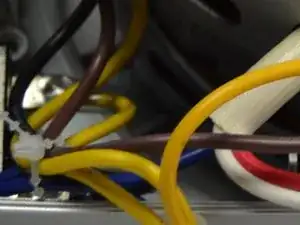

    • Detach the wire nut from the other connected wires.

  5. URET6qucsPuWkqTY

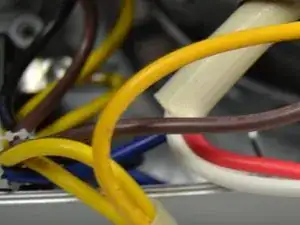

    • Replace the bad wire with a new one of the same gauge.

  6. XHCnGWNk1TuMjXpR

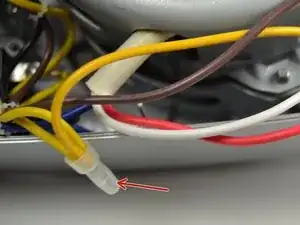

    • Strip the new wire to the same length as the other wires and connect them to a wire nut.

Abschluss

To reassemble your device, follow these instructions in reverse order.
