Cuisinart DLC-10S Pro Classic 7-Cup Food Processor Switch Replacement

Geschrieben von: Riley Carns
  • Kommentare: 9
Cuisinart DLC-10S Pro Classic 7-Cup Food Processor Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide's purpose is to show you how to remove the switch from this type of food processor.

  1. LwgvdaN4lDTHHZGL

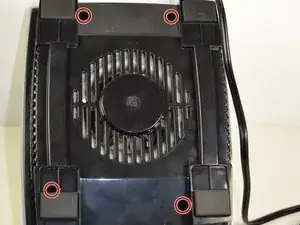

    • Remove the four screws (circled in red) out of the bottom of the processor using a Philips #2 Screwdriver.

  2. IoQUgpnUkbR3HclE

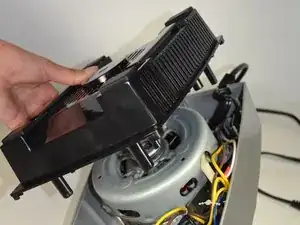

    • Remove the bottom casing of the food processor and set aside.

  3. RpBZUWAx6o4Tw2j1

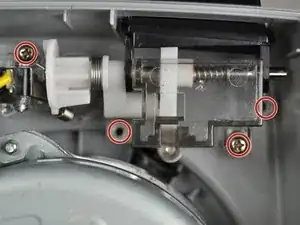

    • Remove the four screws (circled in red) holding the switch down.

  4. JWoBRUGMHBv4WJbi

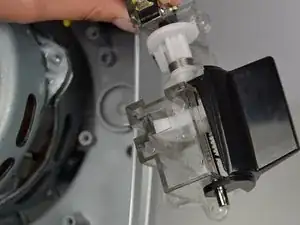

    • Carefully pull the switch out of the device.

    • This step may take some time.

  5. P5MVfh3oAZpULIaB

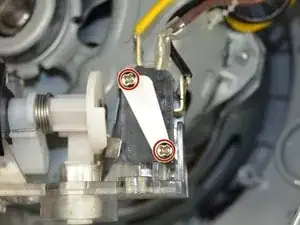

    • Remove the two screws from the switch (circled in red) attached by wires.

  6. RRyIyra5bpbJVx2F

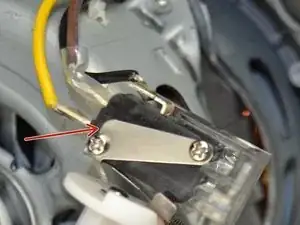

    • Remove the component (shown by the arrow in the picture to the left) attached to wires from the switch.

  7. 6ia33GPrMLk4i6Il

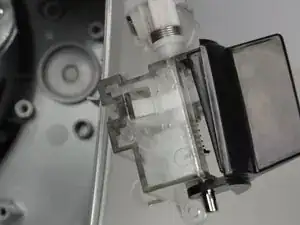

    • Carefully remove and replace the switch, now that the wires are detached.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Riley Carns

Mitglied seit: 02/04/15

279 Reputation

9 Kommentare

Thanks for the guide. Where did you get the replacement switch? Thanks

Fran Fedoroff -

Hey Riley,

Looks good, but where do I buy a replacement switch?

Margaret Mealia -

Yes, where does one buy a switch?

Lori Girard -

I recently disassembled my 25+ year old dcl10plus after no parts sites showed a “switch” before finding this website posting.

Turns out (as is clear in the posting) the actual electrical part of switch is not some fancy gizmo but a simple micro switch in a fancy gizmo.

The original is no longer made and is actually a very plain Jane switch. I found many expensive replacements that were typically $3-5 plus $7-8 shipping. A friend suggested checking banggood and found them sold in lots of 1, 2, 5, 10, 20 starting at about $1.50 including shipping but switch had additional “roller arm” which I assumed would just pop out. I order the two pack at $1.88.

The banggood search id on the item is 944612. I actually had to use a small hack saw to cut the arm as it didn’t pop out. Mine was a DCL10p the switch may vary in other models so disassemble before ordering. Also beware if you look at other sites … there are two sizes of electrical lugs that I saw on this size switch … this is the smaller one (match yours to banggod picture).

Terry Schwarz -

I am hoping to find not the microswitch, but the plastic lever. How would you go about finding a replacement for that? Ours broke and we can turn the Cuisanart on/off by jamming a wooden spoon in there. There must be a better replacement though…

Bswx -

The problem I had was the switch was getting stuck in the ON position. I replaced the original micro-switch Omron V-21-1C8 with Omron V-21-1C6. Ordered it from DIGIKEY - the switch costs $5.70 + $4.99 for shipping.

It fits and works perfectly, no modification was required.

Miron Vislocky -

Can you give some tips how to pull the switch out of the device, step 4? I have hard time with this step. It seems is not enough space to pull it out

roangel17 -

Actually I managed to take it out and cleaned it. Seems food was stuck on it. It works now! Thank you so much. You are the only place I found a fixing guide.

roangel17 -

Where I can buy the switch in case this one doesn’t work after a while?

roangel17 -
