Cuisinart DLC-8F Automatic Circuit Breaker Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide teaches the user how to replace the automatic circuit breaker in your Cuisinart DLC-8F. The removal of the automatic circuit breaker first requires the removal of the power cable and all of this can be done with just a Phillips #2 screwdriver. This is an easy process and should only take 15 minutes.

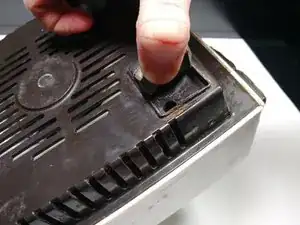

  1. 4QjLHeYBXIiVm214
    4QjLHeYBXIiVm214
    SLbD4iIkxM2LYfwC

    • Remove the four 18 mm Phillips #2 screws from the bottom by prying up the rubber feet to access the screw hole.

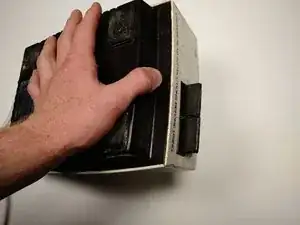

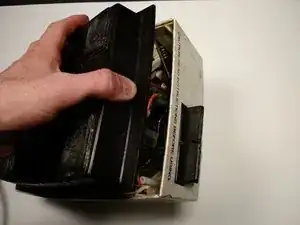

  2. HrEAMHhAlMqEn66d
    HrEAMHhAlMqEn66d
    RGcsNC5vlTkOQINT

    • Gently lift the bottom cover from the main body.

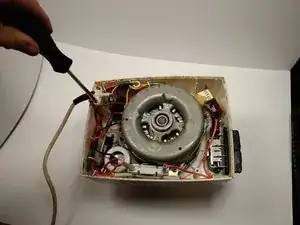

  3. rHSZpbkXUO6PAPWX

    • Remove the two 62 mm Phillips #2 screws from the cable retaining clip.

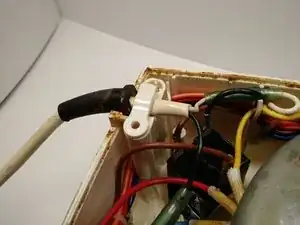

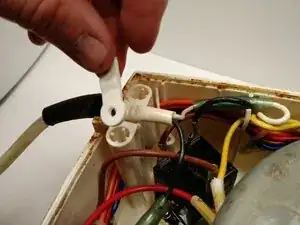

  4. BEtxPMFwQFqsEUI4
    BEtxPMFwQFqsEUI4
    TCPfVZjXtPqXm6kG

    • Lift off the cable retaining

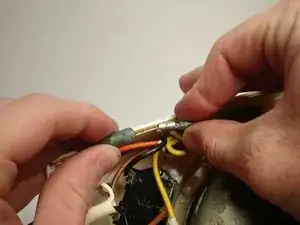

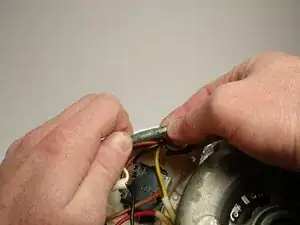

  5. q1RJ5Xkn2ZrMGYZO
    q1RJ5Xkn2ZrMGYZO
    RFBqhSfQJfxDsEGM

    • Pull apart the two wires of the power cable at their connections as shown.

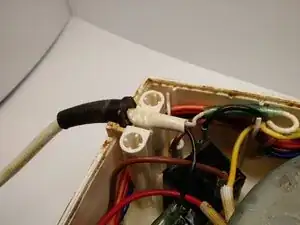

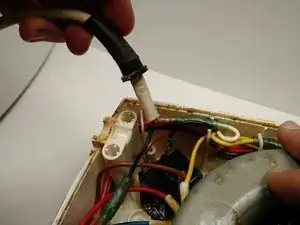

  6. RDmB3KmlGOuWNYqv
    RDmB3KmlGOuWNYqv
    iRNXELgl6DXefIuf

    • Lift out the cable.

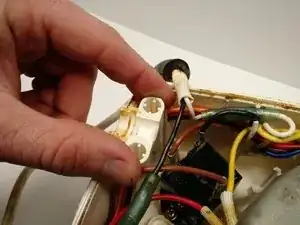

  7. tBr1NZ1jWdlRRrKE
    tBr1NZ1jWdlRRrKE
    yO6pvCAQNrwlYtJs
    PWtBN4I6UTijXlSL

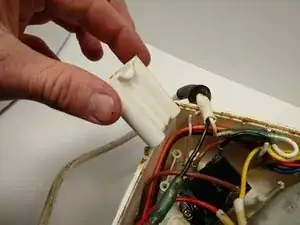

    • Pull out the power cable screw stand with your hand.

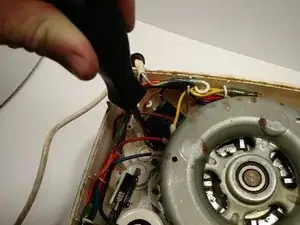

  8. X2wv2WXJrEMhdYAf
    X2wv2WXJrEMhdYAf
    UYXiUfX3OAQII31s

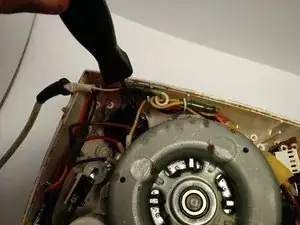

    • Remove the two 15 mm Phillips #2 screws on the automatic circuit breaker.

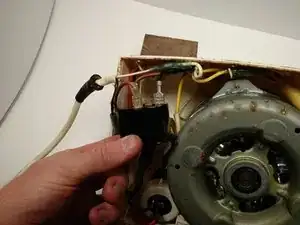

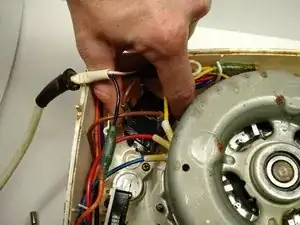

  9. TYnj22WNOcgdR14K
    TYnj22WNOcgdR14K
    MA3lCYMhJkJcfWWR

    • Pull out the automatic circuit breaker with your hand.

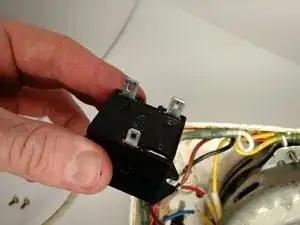

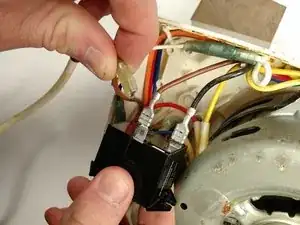

  10. SkULdRLDYtDqsIem
    SkULdRLDYtDqsIem
    SNpoIXIEPdcKnlMY
    gR5BFhQdrOwQYbIN

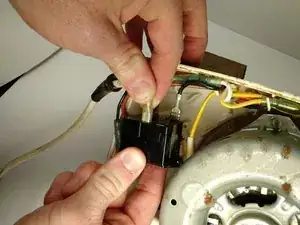

    • Pull off the three wires by grabbing from the base of the wire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
