This guide teaches the user how to replace the power switch assembly in your Cuisinart DLC-8F. The removal of the power switch assembly first requires the removal of the bottom hood and all of this can be done with just a Phillips #2 screwdriver. This is an easy process and should only take about 10 minutes.
Werkzeuge
-
-

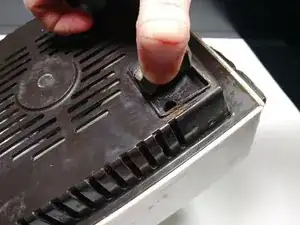

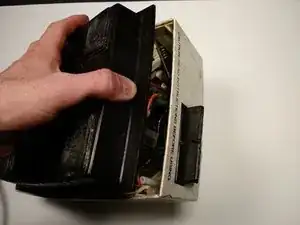

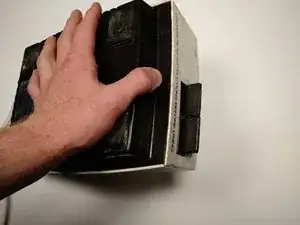

Remove the four 18 mm Phillips #2 screws from the bottom by prying up the rubber feet to access the screw hole.
-
-
-

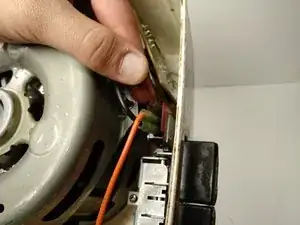

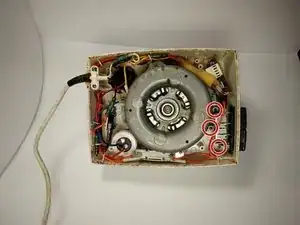

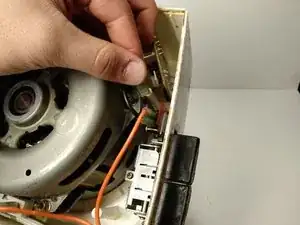

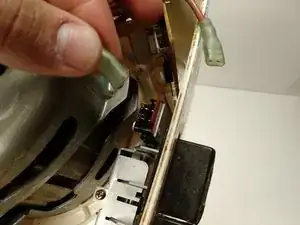

Pull out the three wires coming out of the power switch assembly by firmly grabbing the base of the wires and pulling.
-
-
-

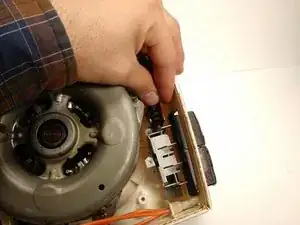

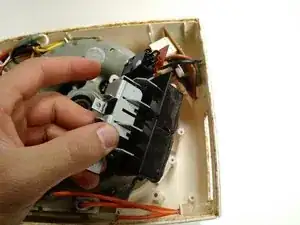

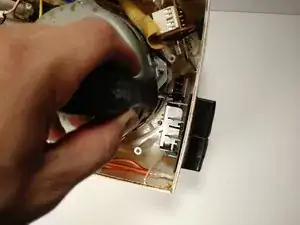

Pull out the power switch assembly with your hand.
-
This might take some jiggling and effort.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
