Cuisinart Griddler GR- 4N Button Spring Replacement

Geschrieben von: Laine Aro

Kommentare: 2

Cuisinart Griddler GR- 4N Button Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

If your cooking surface isn't turning on or is being pushed up you may need to replace a spring, a process which will be explained in this guide.

Werkzeuge

Phillips #2 Screwdriver

Schritt 1

Ensure device is turned unplugged, cooled down and clean before attempting any replacements.
Remove cooking plates by pushing in the tabs on each side of the plate at the same time.

Schritt 2

Remove the six 5.5mm Phillips #2 screws that secure the bottom heating coil to the device.

Schritt 3

Remove the four 30 mm Phillips #2 screws that secure the bottom heating apparatus.

Schritt 4

Remove the single 5.5 mm Phillips #2 screw next to center black button.
After removing the center screw the metal plate should be free to remove.

Schritt 5

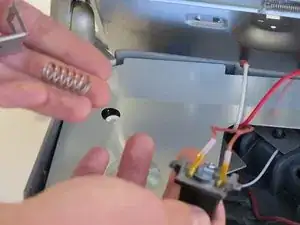

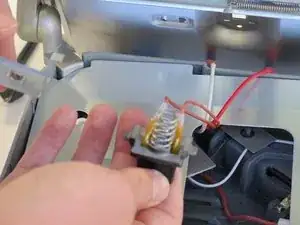

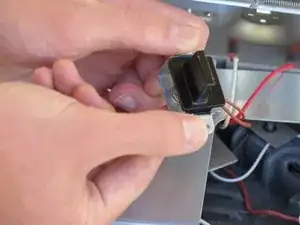

Lift the bottom heating apparatus up and remove large black center piece by pushing down on black button while sliding out.
Realign all surface and put device back together making sure all parts are lined up and heating surfaces are making contact.
The aligned parts will allow the cooking surfaces to work properly.
