Cuisinart Mini-Prep DLC-2A Motor Replacement

Geschrieben von: Eduardo Torres
  • Kommentare: 2
Cuisinart Mini-Prep DLC-2A Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This guide will lead you through the process of replacing a dead or dying motor in your Cuisinart Mini-Prep DLC-2A.

  1. BPgDWwXjOKFEncDL
    BPgDWwXjOKFEncDL
    mwlI6ZSHHHSWN5UV

    • Remove the back panel using a Phillips #1 Screwdriver on the four screws that hold it in place.

    My DLC-2ARA has 3 std Phillips screws & 1 unidentifiable right rear, maybe security screw. Anyone know which driver head to use please?

    Phillip Robinson -

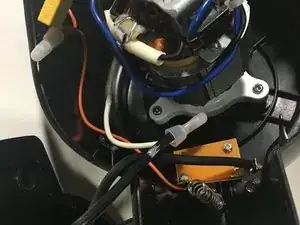

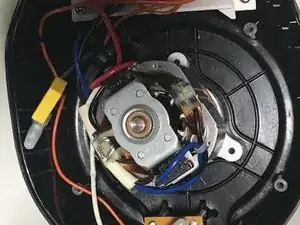

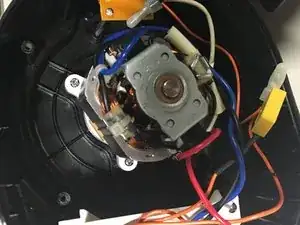

  2. OoJsOcECYhQyMKT4
    OoJsOcECYhQyMKT4
    Ekyjh43nYoDlj1E3
    ZxyJZVVVpCbUpgRC

    • Remove the three screws that hold the motor to the top case using a Phillips #1 screwdriver.

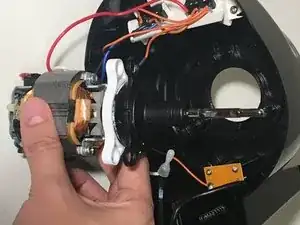

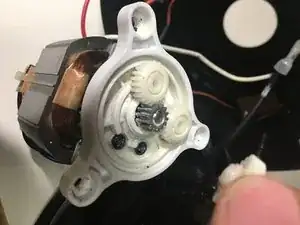

  3. lyBKZIKXkgZtfDTw
    lyBKZIKXkgZtfDTw
    WDVN1FeXOmXGGpCj
    DaXQJfkGTAYLxqZ3

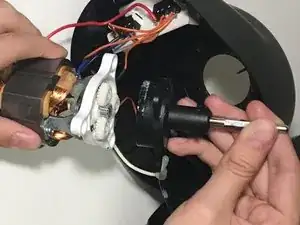

    • Pull out the metal piece from the casing.

    • Pull apart the plastic casing that contains the rod.

    • Take off the plastic gears.

    Question. Is the metal rod supposed to freely spin inside the black plastic piece?

    Javier Perez -

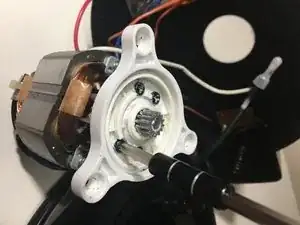

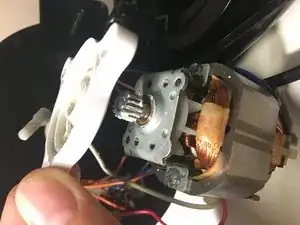

  4. kQHdY1Z3twuYvXZf
    kQHdY1Z3twuYvXZf
    2hliYyyjdCv4vk4I

    • Use the Phillips #1 screwdriver to take off the screws that hold the white plastic to the metal piece.

    • Pull apart the white plastic from the metal piece.

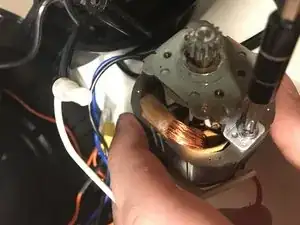

  5. 4YC2MfbKJKCYxeZR

    • Use an electric screwdriver with a Phillips #1 head to take off the top metal piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
