Cuisinart Smart Stick CSB-75 Motor Replacement

Geschrieben von: Jordan Robinson
  • Kommentare: 3
Cuisinart Smart Stick CSB-75 Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

This guide will teach you how to replace the motor inside your Cuisinart Smart Stick. If power is not being supplied to the Smart Stick, the motor could be unresponsive.

  1. 3AaGpZnCEgplZHb3
    3AaGpZnCEgplZHb3
    MMoqcrRjooQvQVgO
    TurpVxiYesKmywgL

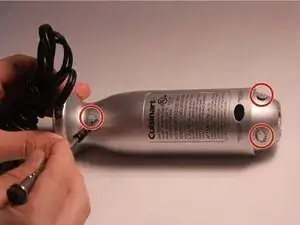

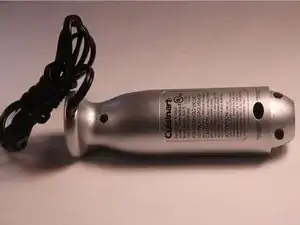

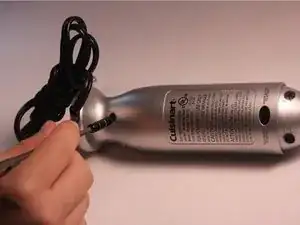

    • Located on the back of the motor body are three screw covers. To remove the three grey screw covers, use a Flat Head Screwdriver (1.0mm or 1.5mm).

    • After prying these off, the screws will be exposed.

  2. eHFkCvCoSGMQY5QB
    eHFkCvCoSGMQY5QB
    SXWbVyCMBRuDTtri

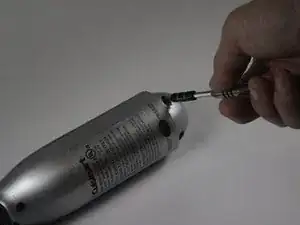

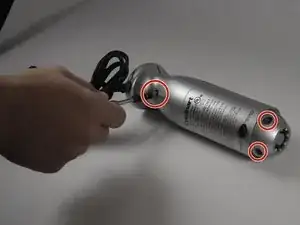

    • Remove three 13.3 mm Phillips PH#2 screws.

  3. 1B4SYouuBxmjPsKO
    1B4SYouuBxmjPsKO
    pxVrOtedwY1CyGje
    dfGRNLBl3Aq5LaVG

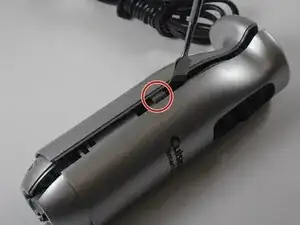

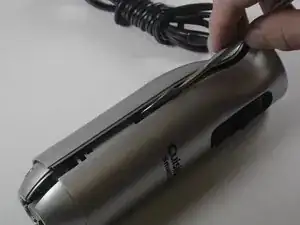

    • Pry open Cuisinart using a plastic opening tool.

    • The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

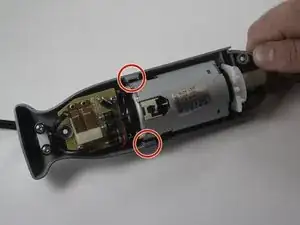

    • Make sure to pry open near the clips of the smart stick for easy opening.

  4. 4u2BEv3UtwMiSmZO
    4u2BEv3UtwMiSmZO
    yMCq6cMwIGPH2M2Q
    UALPvqPM1nIvTJBE

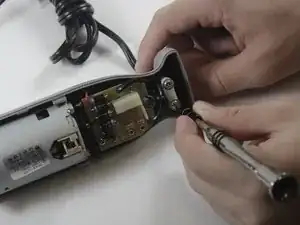

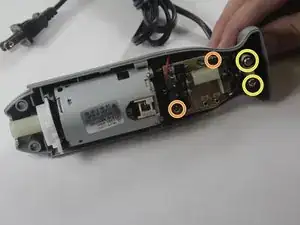

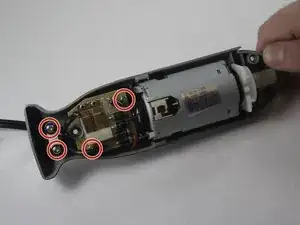

    • Unscrew the 4 screws on inside.

    • Remove 2 13.3mm Phillips PH#2 screws.

    • Remove 2 17.5 mm Phillips PH#2 screws.

    • Unscrewing these screws will isolate the motor.

  5. bwCooCZ435xyXUMI
    bwCooCZ435xyXUMI
    faIcDpqwZ5daorFn
    lqvgjcEaWJIm4qCr

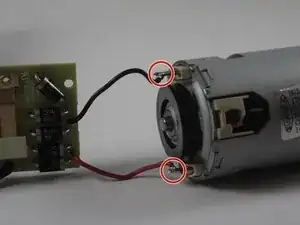

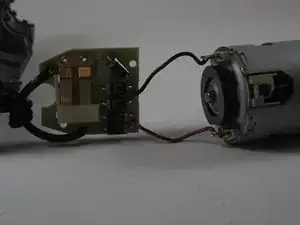

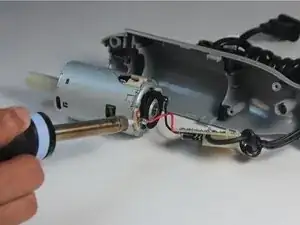

    • Refer to these steps on Soldering to replace the motor in the smart stick.

    • Be careful when soldering; it gets very hot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
