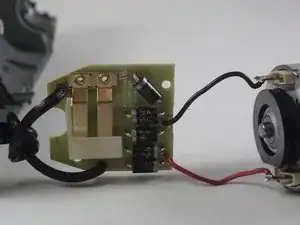

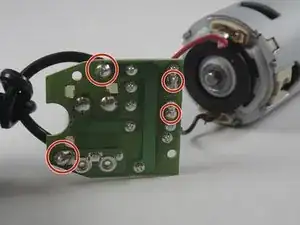

This guide will show you how to replace the switch board inside your Cuisinart Smart Stick. If power is not being supplied to the Smart Stick, the switch board could be unresponsive.
Werkzeuge
-
-

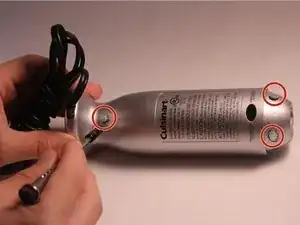

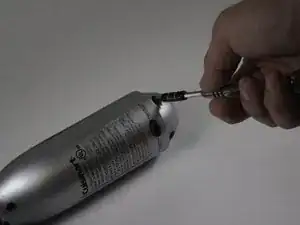

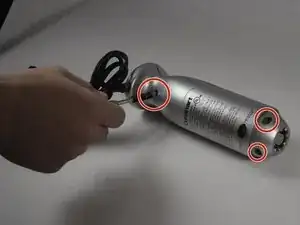

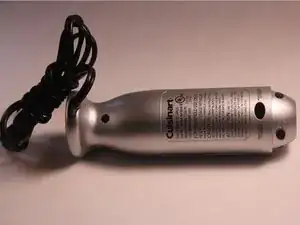

Located on the back of the motor body are three screw covers. To remove the three grey screw covers, use a Flat Head Screwdriver (1.0mm or 1.5mm).
-

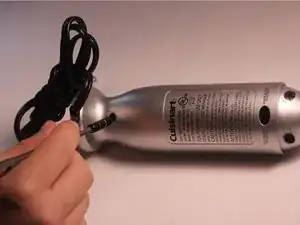

After prying these off, the screws will be exposed.
-
-
-

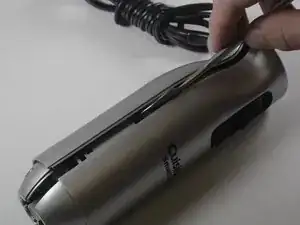

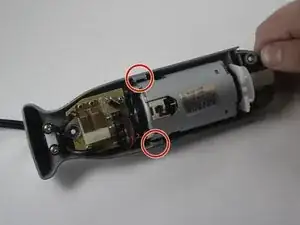

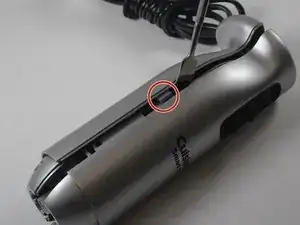

Pry open Cuisinart using a plastic opening tool.
-
Make sure to pry open near the clips of the smart stick for easy opening.
-
-
-

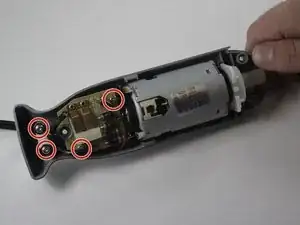

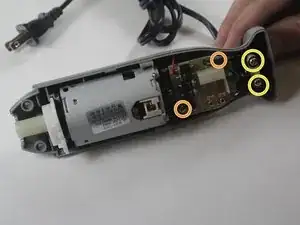

Unscrew the 4 screws on the inside.
-

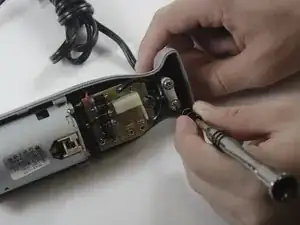

Remove 2 13.3mm Phillips PH#2 screws.
-
Remove 2 17.5 mm Phillips PH#2 screws.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
