Cuisinart-140BK Knob Replacement

Geschrieben von: Alora Saxton
  • Kommentare: 0
Cuisinart-140BK Knob Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will instruct you on how to properly disassemble your Cuisinart-140BK toaster. It will also help your properly replace the knobs on your toaster, while further preventing any damage to the device.

  1. C6HBnMOXvZNNUmXa

    • Unplug the toaster before disassembly.

  2. O3bwwVe6ZoQ1CJVK
    O3bwwVe6ZoQ1CJVK
    oBgBp1QecXS11iCD

    • Turn the toaster upside down.

    • Unscrew all 4mm screws using Phillips #2 screwdriver.

  3. JN1rO2KUTLSOnpI6

    • Turn the toaster right side up.

    • Lift up the front cover carefully because the cables can be damaged.

    • Pull out the toaster lever knobs by pulling it away from the toaster before removing the top cover.

  4. NTYZUvZjyvHwYLVC
    NTYZUvZjyvHwYLVC
    T3pyE4RlySsGu3In
    M1cWG1nlFS1QT5Oa

    • Detach the cable that connects the toaster to the circuit board, in both control panels.

  5. UGLaZ2lZMtOa1UnY

    • Carefully lift up the top cover.

  6. MHRJxGALUcmPVtc6
    MHRJxGALUcmPVtc6
    kCAJwEX2kmHGXHMh
    TUo63lAMunGLsloh

    • The circuit board is located inside the front cover.

    • Unscrew total of six 4mm screws that attach each circuit board to the top cover, using Phillips #2 screwdriver.

    • Remove and replace the circuit board.

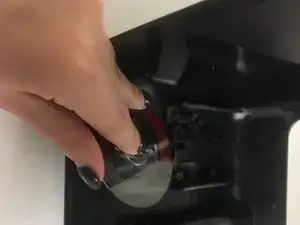

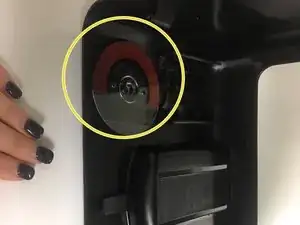

  7. T5HTmFTkOrmVwrIV
    T5HTmFTkOrmVwrIV
    oQGiIrQcXePHBjGR

    • Lift the clear plastic backing off the knob, under the circuit board.

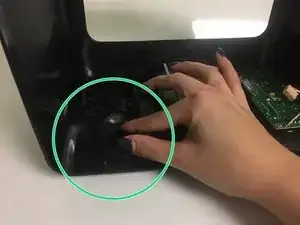

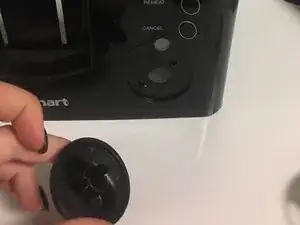

  8. WVDMATOb4fXpXlr2
    WVDMATOb4fXpXlr2
    PxMhSuFroUIKbFbM

    • Pinch the back side of the knob to detach it from the toaster.

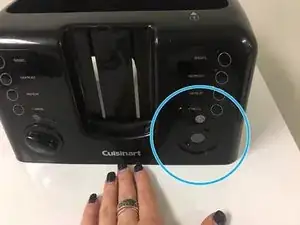

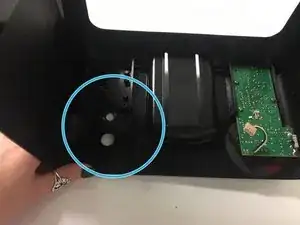

  9. PN1SZfyQBaqJLNSr
    PN1SZfyQBaqJLNSr
    eulPTQ6CBKWwNHnX

    • This is how the device should look without the knob.

    • Repeat the process on the opposite side of the toaster to remove the second knob.

Abschluss

To reassemble your device, follow these instructions in reverse order.
