D-Link DCS-2630L Wi-Fi Camera Speaker Replacement

Geschrieben von: Collyn Dodge
  • Kommentare: 0
D-Link DCS-2630L Wi-Fi Camera Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

4 Minuten

Einleitung

  1. hLwYGfObSXddJLo6

    • Remove the two 9.65 mm screws on the back cover using the Philips head PH00 screw driver.

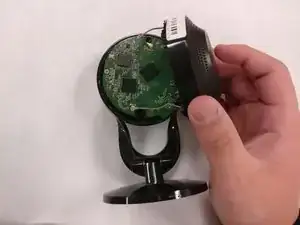

  2. syVABDNMBxmuJD1n

    • Remove the back casing to expose the circuit board.

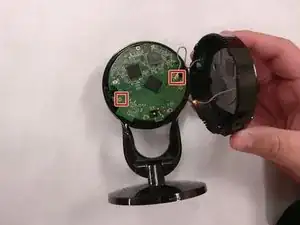

  3. sW5fNqyQUiZkstyj

    • Detach the gray antenna wires by gently pulling on the side closest to the circuit board.

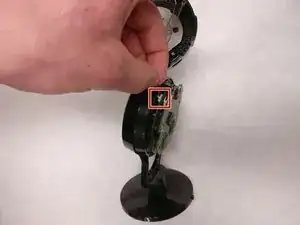

  4. E3Yp12gHBI3Or6uo

    • Detach the speaker wire by gently pulling on the side closest to the body of the camera.

  5. TZ6jJ56Eysw6X2ky

    • Remove the two 7.25 mm screws using the Ph00 head.

  6. HG3uRfsAJhlPjaWF

    • Remove the back grey speaker plate

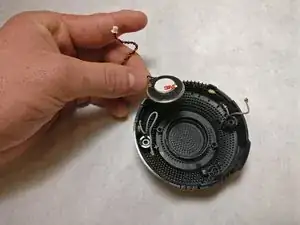

  7. Zmri5BcDIDBBRyGC

    • Remove the speaker by gently pulling on the wire near the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
