Einleitung
If your camera is failing to move in a certain direction one of the two motors inside may be malfunctioning. If this is the case the motor will need to be replaced. The replacement process is pretty simple and doesn't need many tools. It is important to keep track of the small screws, they are easily lost.
Werkzeuge
-
-

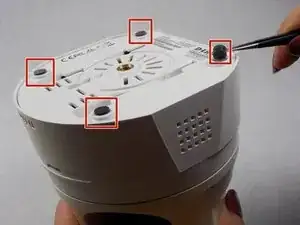

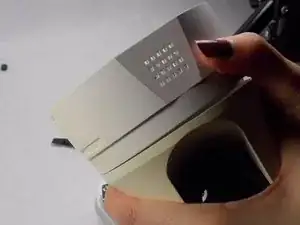

Remove the four rubber feet on the bottom of the camera with tweezers.
-

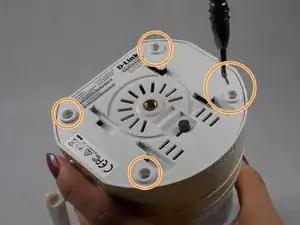

Remove the four screws using a Phillips #1 screwdriver.
-

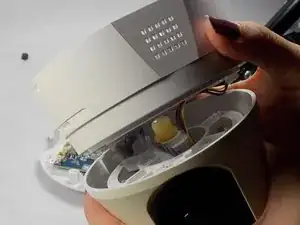

Remove the lower piece of the camera body.
-
-
-

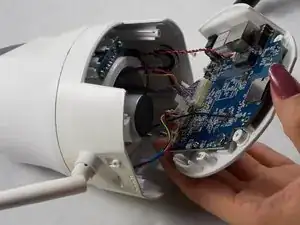

Remove the motherboard and bottom of the camera body.
-

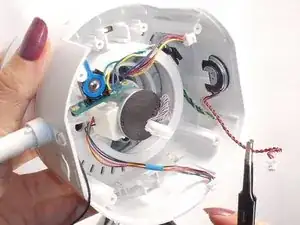

Disconnect the five cables from the motherboard using tweezers.
-
-
-

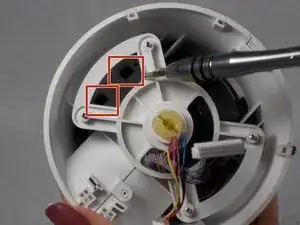

To remove the top of the camera you must push in the black tabs using the spudger. There are 3 tabs per side.
-

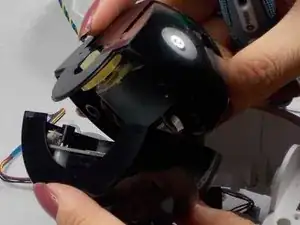

While pushing in the tabs, you can now lift the top black portion of the camera using your hands.
-
-
-

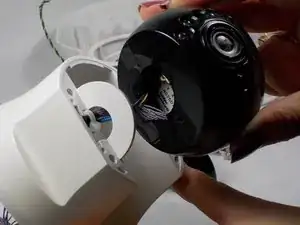

With a little wiggle, the camera module will come free from the body.
-

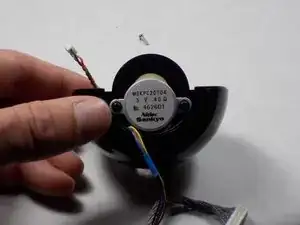

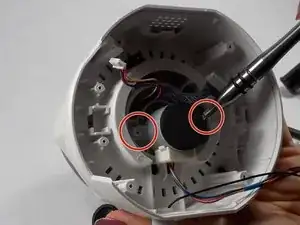

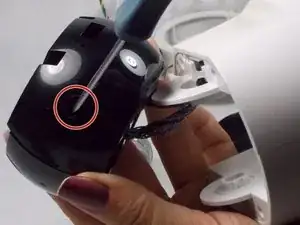

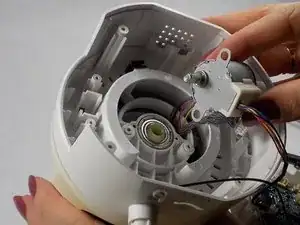

Unscrew the two 7mm screws on the camera using a #1 Phillips screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Where can I buy new motor?
I do not know, I purchased a “for Parts” camera on e-bay for $15.00 and used the motor from that unit.
