Einleitung
If you find your camera is experiencing distorted audio it could be caused by a malfunctioning speaker. If this is the case the replacement of the speaker is a pretty simple and straightforward task. It is important that you keep track of the small screws, they are very easy to lose track of.
Werkzeuge
-
-

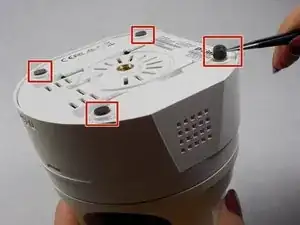

Remove the four rubber pieces to gain access to the screws.
-

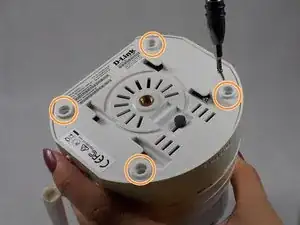

Remove the four 7mm screws with a #1 Phillips screwdriver.
-

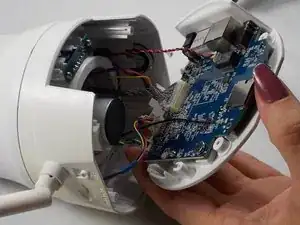

Remove the bottom of the camera body.
-
-
-

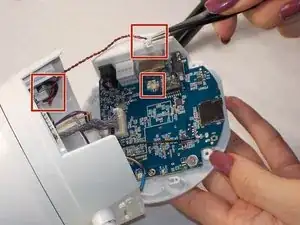

Using safety tweezers, disconnect the 2-wire connector with the red and black leads located close to the ethernet and SD ports.
-
-
-

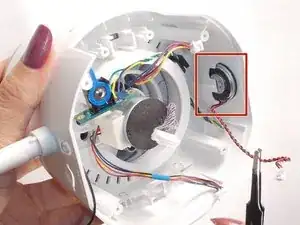

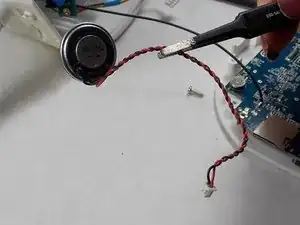

The speaker is circular, black and silver in color with a red and black cord. It is easily removed from the upper body of the camera with your fingers or safety tweezers.
-

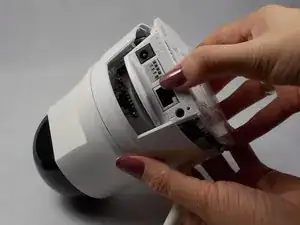

To reassemble your device, follow these instructions in reverse order.
