Einleitung

Did the back casing of your Wi-Fi Baby Camera crack? The answer to fixing and replacing that is in this guide.

  1. XGKdsa2TSXclGCXx
    • Grasp the side of the accent ring. There is a notch that your thumb will be able to grab ahold of.

  2. JljsHh2jFKWKXBDy

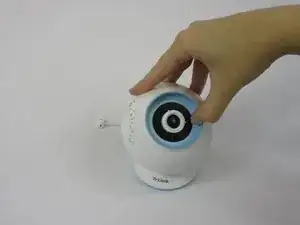

    • Twist the accent ring until it pops off. You may need to use both hands if the accent ring is stuck.

  3. HODEkHI5S1L6BfCw
    • Replace your accent ring with whichever color you choose.

  4. SMHDeDxQwtoAE2Rf
    SMHDeDxQwtoAE2Rf
    n5TexVVBVdXDgHtG

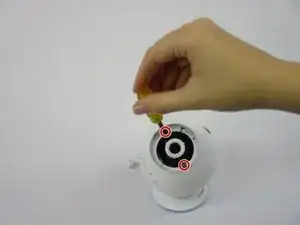

    • Remove one Phillips #2 screw from each side of the camera lens.

  5. TK1BmbAVHBVtmrpB
    TK1BmbAVHBVtmrpB
    JE1pIIggBY5hNOwP
    VLLgRPiMLKtQtCHZ

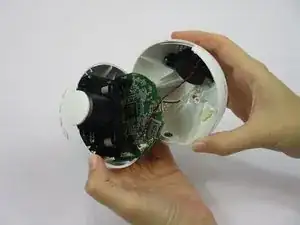

    • Pull the Wi-Fi Baby Camera open.

    • It should be easily done after the screws are removed.

  6. XChP4STHxZT11fd4
    XChP4STHxZT11fd4
    6KTKUWfLBeGVCKXg

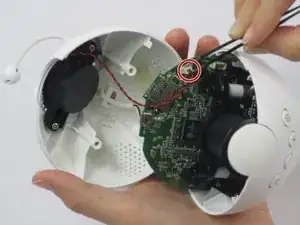

    • Take your tweezers and gently pull the white tip out from its plug that is connected to a red and black twisted wire.

  7. OdUGlKnA5ZGudyKG
    OdUGlKnA5ZGudyKG
    ieu4VFcLCihFVcYb
    XBZMUUSroHmaygYQ

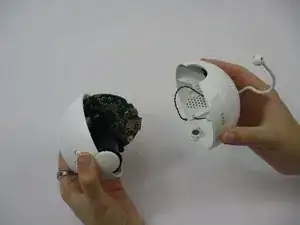

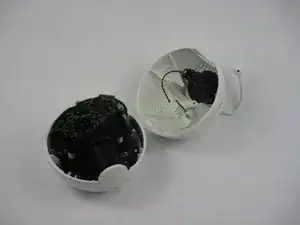

    • Take your tweezers and gently pull the white tip that is on the end of the white wire (the antenna) out from its plug in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
