D-Link DCS-825L LED Light Cover Replacement

Geschrieben von: Annalise Leclair
  • Kommentare: 0
D-Link DCS-825L LED Light Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

Does the LED light cover have a crack on the outer cap? Is it yellowed or discolored? This guide will show you the way to replace the LED light cover for your Wi-Fi Baby Camera.

  1. XGKdsa2TSXclGCXx

    • Grasp the side of the accent ring. There is a notch that your thumb will be able to grab ahold of.

  2. JljsHh2jFKWKXBDy

    • Twist the accent ring until it pops off. You may need to use both hands if the accent ring is stuck.

  3. HODEkHI5S1L6BfCw

    • Replace your accent ring with whichever color you choose.

  4. SMHDeDxQwtoAE2Rf
    SMHDeDxQwtoAE2Rf
    n5TexVVBVdXDgHtG

    • Remove one Phillips #2 screw from each side of the camera lens.

  5. TK1BmbAVHBVtmrpB
    TK1BmbAVHBVtmrpB
    JE1pIIggBY5hNOwP
    VLLgRPiMLKtQtCHZ

    • Pull the Wi-Fi Baby Camera open.

    • It should be easily done after the screws are removed.

  6. XChP4STHxZT11fd4
    XChP4STHxZT11fd4
    6KTKUWfLBeGVCKXg

    • Take your tweezers and gently pull the white tip out from its plug that is connected to a red and black twisted wire.

  7. OdUGlKnA5ZGudyKG
    OdUGlKnA5ZGudyKG
    ieu4VFcLCihFVcYb
    XBZMUUSroHmaygYQ

    • Take your tweezers and gently pull the white tip that is on the end of the white wire (the antenna) out from its plug in.

  8. iqOjdchYWuLFOE4K

    • Grab the white cylinder with your thumb and index finger.

  9. rP2c2ZAIt5ZDQChB

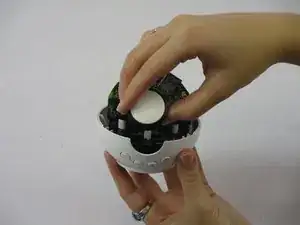

    • Gently lift the cylinder up from its placement in your Wi-Fi Baby Camera.

  10. BWrbU2JIgIFUVCgV

    • Remove the white cylinder completely to replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
