DBPOWER RD-810 Magnifier Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

The Magnifier amplifies the light from the LED bulb before it passes through the imager. Removing it allows better access to the imager and the LED bulb.

  1. HUx35osIAcYYPDbY
    HUx35osIAcYYPDbY
    E2OCwCpEahbw1Xol

    • Make sure the projector is unplugged before starting

    • Place the projector upside down to access the screws on the bottom.

    • Remove the five 7mm long screws using a #3 Phillips screwdriver at least 2 inches long.

  2. gOgVteitjwGebQyi

    • Flip the projector over and then remove the cover by lifting it up.

  3. SBahvP3pOpMsFigl
    SBahvP3pOpMsFigl
    OvAgGjJoRJqugjYW
    slbUjxPXEbqMHT4d

    • Remove the three 6mm PH2 phillips head screws.

    • Disconnect the ribbon cable by flipping up the latch on the connector and then pull the ribbon out.

  4. ZIMqVRXOqZLsTcZG
    ZIMqVRXOqZLsTcZG
    1X2IrrUgZ1O4PvBZ
    oF6MABNsWVZ2DVfG

    • Disconnect the three wire connectors. Grasp both sides of the connector and pull apart.

    • Keep the connector parallel to the mother board to avoid breaking the solder connection.

    • Lift the motherboard up and place it out of the way.

  5. NAAUJOEolZjgbLdr
    NAAUJOEolZjgbLdr
    tON2rR2VNoBGrVKw
    QIW6pBgRJ4eYSh4G

    • Remove the five 7mm PH2 phillips head screws on the black plate and lift the plate out.

    • Lift the aluminum heat sink up to remove it from the projector.

    • The motherboard is already removed in this step.

  6. FRPjhjrhHNTNwUMA
    FRPjhjrhHNTNwUMA
    CGLUQYoWVPpiFDsN
    BLb3aTQL5Sg1AOEL

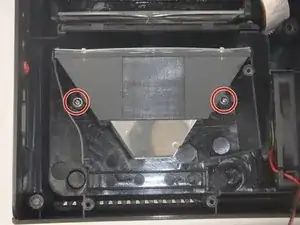

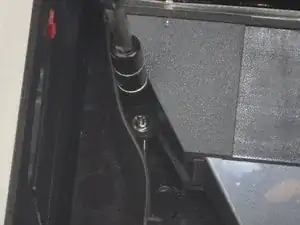

    • Remove the two 9mm PH2 phillips head screws.

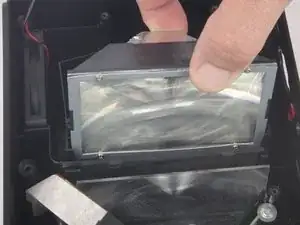

    • Lift the Magnifier out of the projector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
