Einleitung
The power supply switch turns power to the projector on and off. If the projector is not turning on, the power supply switch may need to be replaced.
Werkzeuge
-
-
Place the projector upside down to access the screws on the bottom.
-
Remove the five 7mm long screws using a #3 Phillips screwdriver at least 2 inches long.
-
-
-

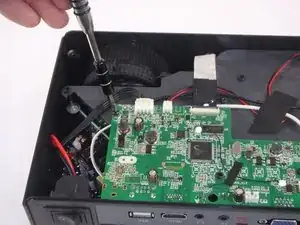

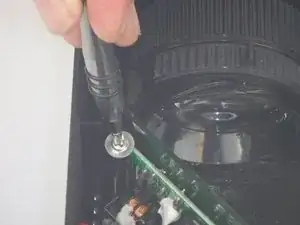

Remove the three 6mm PH2 phillips head screws.
-

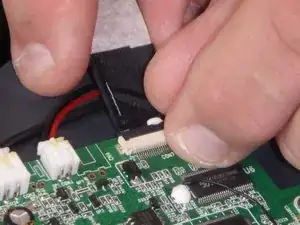

Disconnect the ribbon cable by flipping up the latch on the connector and then pull the ribbon out.
-
-
-

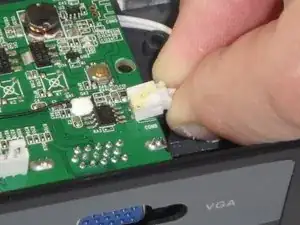

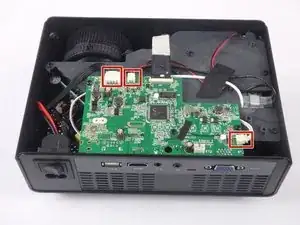

Disconnect the three wire connectors. Grasp both sides of the connector and pull apart.
-
Lift the motherboard up and place it out of the way.
-
-
-

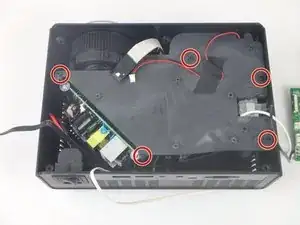

Remove the five 7mm PH2 phillips head screws on the black plate and lift the plate out.
-

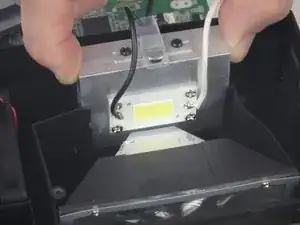

Lift the aluminum heat sink up to remove it from the projector.
-
-
-

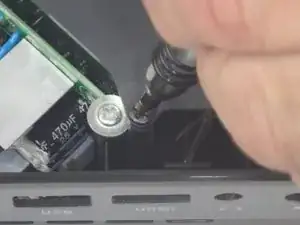

Remove the two 9mm PH2 phillips head screws.
-
Lift the mirror behind the power supply circuit out to gain access to the circuit board.
-
-
-

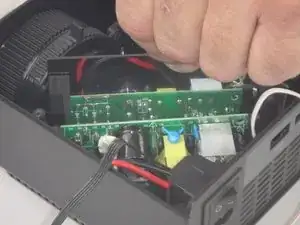

Lift the power supply circuit board out of the projector.
-

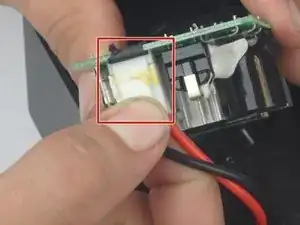

Disconnect the cable connector by pulling the two sides of the connector apart.
-
-
-

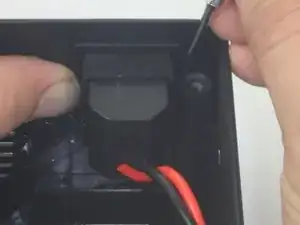

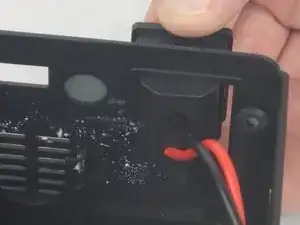

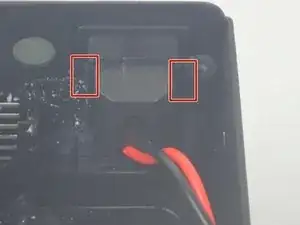

Using the small plastic splunger, press in on the two latches on the sides of the power supply switch, then push it out of the case.
-
To reassemble your device, follow these instructions in reverse order.
