DBPOWER T20 Fan Replacement

Geschrieben von: Sebastian Alvarez de Araya
  • Kommentare: 3
DBPOWER T20 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

Taking out the fan is quick and easy. When removing the fan it is okay to use some force as it's not delicate.

  1. EWsMPA6kyq5dmO4b

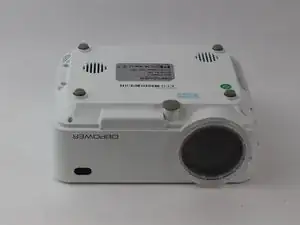

    • Flip the device and lay flat.

  2. tbGKi5YOBUPMMkUO

    • Remove the four (9 mm) screws with a PH2 screwdriver.

    • Remove the two (7 mm) located with a PH2 screwdriver.

  3. 4VJodpDJZlvPRqFD
    4VJodpDJZlvPRqFD
    ZSSUp2hSamESYMSV
    XjdUujnaf5LZB4n6

    • Flip the device over and pry the top off with a plastic opening tool.

  4. EXWaF2ou5NcX1lYF

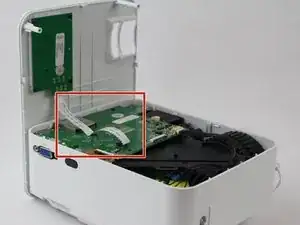

    • Remove the ribbon cable connecting the motherboard to the button control board by gently pulling it from its connector.

  5. fWYsIxUnQjGA2Kyx
    fWYsIxUnQjGA2Kyx
    j4LHonCJvPoNTF1O

    • Remove four (6 mm) screws connecting the motherboard using a J0 screwdriver.

    one of the screws have been stripped, I’ve tried the rubber band and the glue trick, it didn’t work. What do I do to remove it? please respond

    arman waggoner -

  6. trRAUNLES2IFlrKD
    trRAUNLES2IFlrKD
    vQkSSglA43265rNO
    OcQnJ5HSa6hoNBOA

    • Remove the two cables connected to the motherboard: black power cable and the red/black fan cable.

    • the black cable requires more force to remove than the other cables.

  7. joEhEZpGBaYLpUcM
    joEhEZpGBaYLpUcM
    BOHRrUVkxpouFQeU

    • Lift the black latch on the ZIF connector and remove the ribbon cable that attaches the digitizer to the motherboard.

  8. PI4iXGIZQqnlLOHb

    • Raise motherboard by lifting sideways and then up to avoid the ports.

  9. SZxjwAKmBROTtIES
    SZxjwAKmBROTtIES
    m24f1a2qX3U2OCYs

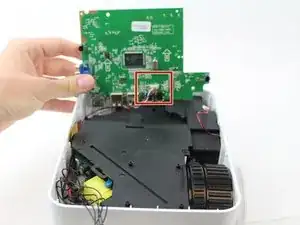

    • Remove wires attaching the piezoelectric speakers to the motherboard.

  10. PIuyVcthnU1aInaI
    PIuyVcthnU1aInaI
    JottcDMKwepGPKZh

    • Remove the five screws securing the black plastic cover with a J0 screwdriver.

    • Lift up and out to remove.

  11. jhMxYGlYyI2Z1CH6
    jhMxYGlYyI2Z1CH6
    iAOIIQ6MxyMcOybg

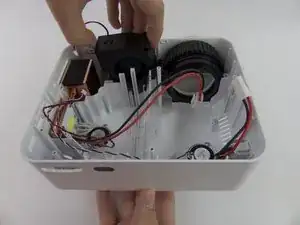

    • Pull the fan up and out of the housing.

    • In this image the lamp and power input have been removed to increase visibility, you do not have to remove these to remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
