DBPOWER T20 Lens Replacement

Geschrieben von: Andrea Espinosa
  • Kommentare: 5
DBPOWER T20 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 Minuten

Einleitung

You will not be able to access the lens without following these steps. Removing the lens does not take a lot of force since it is on a hinge and should lift out easily. However, none of the items you come in contact with leading up to the lens removal are sturdy so don't be afraid to use some force.

  1. EWsMPA6kyq5dmO4b

    • Flip the device and lay flat.

  2. tbGKi5YOBUPMMkUO

    • Remove the four (9 mm) screws with a PH2 screwdriver.

    • Remove the two (7 mm) located with a PH2 screwdriver.

  3. 4VJodpDJZlvPRqFD
    4VJodpDJZlvPRqFD
    ZSSUp2hSamESYMSV
    XjdUujnaf5LZB4n6

    • Flip the device over and pry the top off with a plastic opening tool.

  4. EXWaF2ou5NcX1lYF

    • Remove the ribbon cable connecting the motherboard to the button control board by gently pulling it from its connector.

  5. fWYsIxUnQjGA2Kyx
    fWYsIxUnQjGA2Kyx
    j4LHonCJvPoNTF1O

    • Remove four (6 mm) screws connecting the motherboard using a J0 screwdriver.

    one of the screws have been stripped, I’ve tried the rubber band and the glue trick, it didn’t work. What do I do to remove it? please respond

    arman waggoner -

  6. trRAUNLES2IFlrKD
    trRAUNLES2IFlrKD
    vQkSSglA43265rNO
    OcQnJ5HSa6hoNBOA

    • Remove the two cables connected to the motherboard: black power cable and the red/black fan cable.

    • the black cable requires more force to remove than the other cables.

  7. joEhEZpGBaYLpUcM
    joEhEZpGBaYLpUcM
    BOHRrUVkxpouFQeU

    • Lift the black latch on the ZIF connector and remove the ribbon cable that attaches the digitizer to the motherboard.

  8. PI4iXGIZQqnlLOHb

    • Raise motherboard by lifting sideways and then up to avoid the ports.

  9. SZxjwAKmBROTtIES
    SZxjwAKmBROTtIES
    m24f1a2qX3U2OCYs

    • Remove wires attaching the piezoelectric speakers to the motherboard.

  10. PIuyVcthnU1aInaI
    PIuyVcthnU1aInaI
    JottcDMKwepGPKZh

    • Remove the five screws securing the black plastic cover with a J0 screwdriver.

    • Lift up and out to remove.

  11. dsEe4L6FujCbFnSk

    • The lamp does not need to be removed for this step to be preformed.

  12. hukTFvdJiEiXlHGA

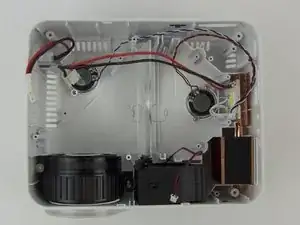

    • Detach the keystone adjuster from the lens housing.

    • Lens is on a hinge so it should lift off easily, if it doesn't, adjust by swaying it forward or backward.

  13. tVbjdEY5nGvVkwub

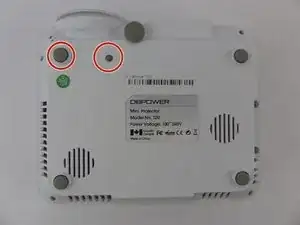

    • Remove the rubber foot and warranty sticker found underneath the device.

  14. AZlJSsd22D61QWDJ
    AZlJSsd22D61QWDJ
    2BxRGYIM1h4KlACp

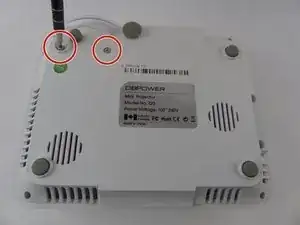

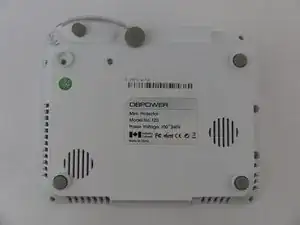

    • Remove the two screws on the bottom of the device with a J0 screwdriver.

  15. NYFoZq2QBLR1NVLK

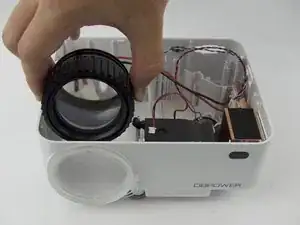

    • Remove the focus-adjustment ring from the lens housing.

    How do we replace the lens? I replaced my lens and it hasnt been clear ever since.. Too much blurr

    Eluby Dana Wingolo -

Abschluss

To reassemble your device, follow these instructions in reverse order.
