Einleitung

This guide will go over the step by step replacement process of a faulty power cord on a Cuisinart DCC-3200 coffee maker. All recommended tools for this repair are listed at the beginning of this guide.

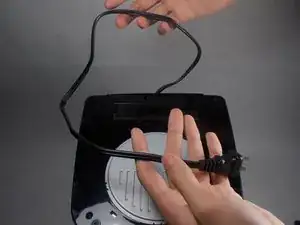

  1. SmigZ1IK1s512t6C

    • First, please be sure that the device is unplugged and that there is no water in the reservoir.

    • Check the power cord for frays or cracks.

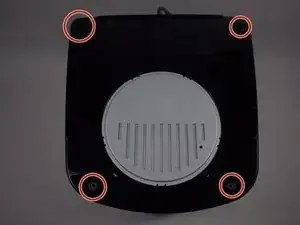

  2. UnqSR6nV54YOKuFi

    • If the cord appears fine, please flip the device upside-down and unscrew the 4 screws on the bottom.

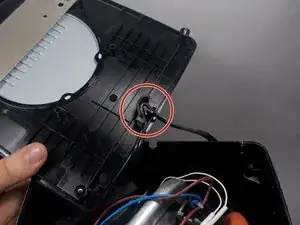

  3. 4CFGCEQpCt62xCuA

    • Remove the bottom panel and unclip the power cord from the panel.

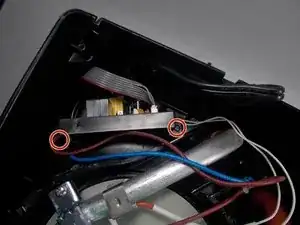

  4. 23IUCPZ35A4IA2Gf

    • With the front facing towards you upside down, to the top left of the circular hotplate is a beige circuit board with two screws on either side holding it in. Please unscrew them.

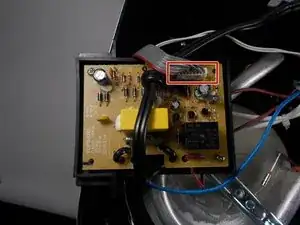

  5. kVcONGZAWDOiVBpa

    • Carefully remove the circuit board and unplug the gray ribbon wire that is plugged into it.

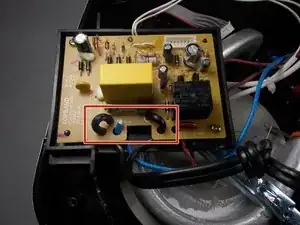

  6. ZSq6RXVuuk6PnXDq

    • Check to see if the power cord is connected properly to the circuit board.

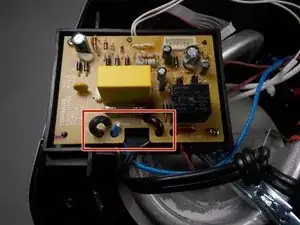

  7. MIXaqGk4aDuxcuNO

    • Strip the wire and twist with the other or solder it back on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
