DJI Mavic Mini Propeller Replacement

Geschrieben von: Maximillian Dow
  • Kommentare: 0
DJI Mavic Mini Propeller Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace a DJI Mavic Mini propeller. Damaged propellers are common, as they may be damaged in flight. This guide provides a simplistic and easy to follow instructions on replacing a damaged or faulty DJI Mavic Mini propeller.

Make sure to have extra propellers. If you purchased a DJI Mavic Mini, it should have come with extra propellers.

Have extra screws only if needed, as some screws may be damaged.

You need a maximum of 8 propellers, as that is how many propellers are on the drone, although you only need the quantity that you are planning to replace.

Make sure the drone is compacted before starting the process, as this may help prevent accidentally breaking the drone arms.

  1. NIMWoivak2cG5ffT
    NIMWoivak2cG5ffT
    jtrJQrRejJ4ZmmRx
    pYoxDqFkL4RPtLNO

    • Identify the drone propellors.

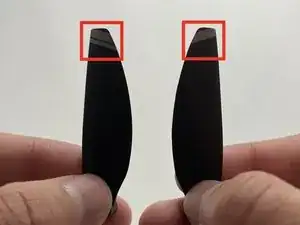

    • The drone propellers have a different design on the tip, with one consisting of two silver strips, and the other with only one. Refer to the third image.

    • There is a bump on the propellor with the two silver stripes, located near the screw. This helps indicate the side of the the propeller goes on, as there is an indent on that side near the propeller motor on the drone. Refer to the first image.

  2. ubTC2jYMI23keFba
    ubTC2jYMI23keFba
    elHwGlNuVvoOUXWR
    EjWs5vJ1GfLS3HNE

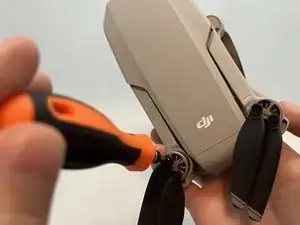

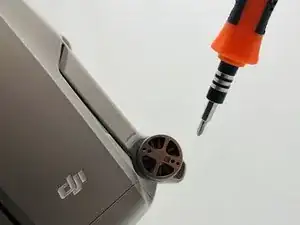

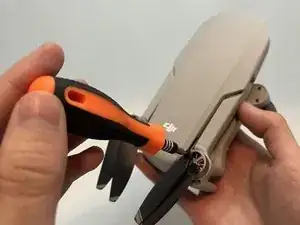

    • Use a JIS #000 screwdriver to gently unscrew and remove the propellers.

    • Unscrew the propellers counter-clockwise, while holding onto the propeller motor of the drone to prevent movement.

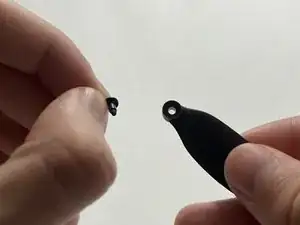

  3. inkQbjIWQQOaK455
    inkQbjIWQQOaK455
    25ZmEflV1yXXmHrF
    6Yr4ZPKXLkQR4RwM

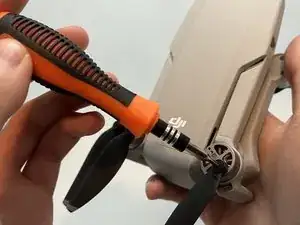

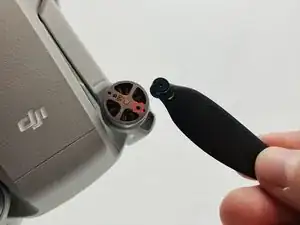

    • Insert your new propellers into the hole closer to centre of the motor.

    • This also applies for the second propeller on the same motor. Refer to the second image.

    • You may replace the screw if needed as well, if the previous screw is damaged.

    • Make sure you know which propeller goes where. This is important as a wrong placement can cause unstable flight.

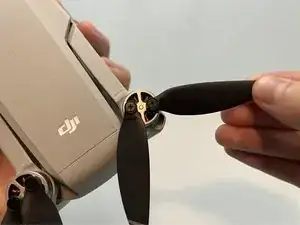

  4. I36pq2Ux16GLVMob

    • Double check if your propellers are on properly.

    • Check for any loose screws or propellers.

    • Gently pull on the new propellers you had just replaced.

  5. 4o6v22VHLuKCRDBd

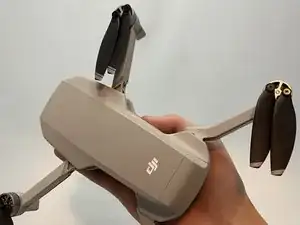

    • Gently move your Mavic Mini drone around, rotate it a couple of times to indicate any loose parts.

    • If you notice any loose screws or propellers, you would need to tighten it, if there is an issue with the screw, the screw may need to be replaced.

  6. ZlUGwNdkVkQC5UVR

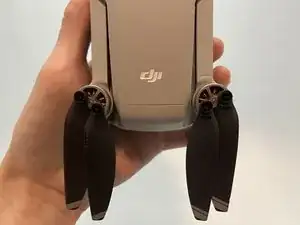

    • Do one last check to make sure the propellers are on their proper sides.

    • Do one last check for any loose screws or propellers.

    • If you notice any propellors on the wrong side, you will have to redo the each step.

Abschluss

After this guide, you’ll be able to replace your DJI Mavic Mini propellers easily.
