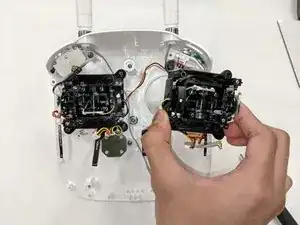

This guide will demonstrate step by step detailed instructions on how to safely remove and replace the Control Sticks of a DJI Phantom 4 Advanced Remote Controller. Since this operation will require to disconnect the motherboard is highly recommended to start this task with the appropriate tools on hand as well as enough time.
During this process s lot of connectors are required to be unplugged with caution to avoid damages to other parts , compromising the functionality of the remote controller.
Someone might need to replace the control sticks because of faultiness such as, inaccurate navigation, drifting directions without input, and control stick not functioning at all.
-
-

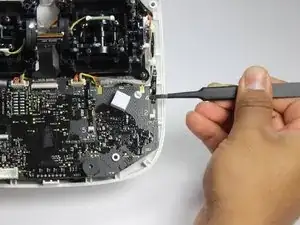

With tweezers, gently remove the large con board tab.
-
Use your hands to remove the two small clips. Pull out from the socket, in a horizontal direction.
-
-
-
Peel off the rubber grips to access the screw holes.
-
Remove the back board and set it aside.
-
-
-
Pull apart the back plastic panel.
-

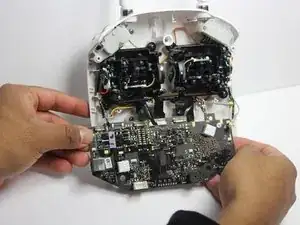

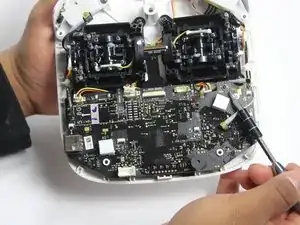

Once the back panel is off, you will have access to the motherboard.
-
-
-

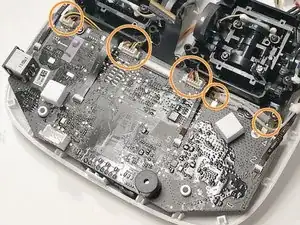

Disconnect ribbon tabs 1,2,5,8G, and 3.
-
Remove ribbon tab by pulling gently along motherboard. Do not pull straight out.
-

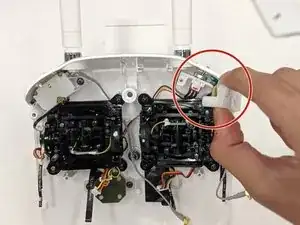

Then remove the plugs
-
To reassemble your device, follow these instructions in reverse order.
