DJI Phantom 4 Advanced Remote Controller Mobile Device Holder Replacement

Geschrieben von: Abdullah Muslih Abdul Samad
  • Kommentare: 0
DJI Phantom 4 Advanced Remote Controller Mobile Device Holder Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will demonstrate step by step detailed instructions on how to safely remove and replace the Mobile Device Holder of a DJI Phantom 4 Advanced Remote Controller.

Someone who might want to replace the mobile device holder is because it doesn’t clamp the phone properly or it is broken.

  1. HMxCE53Ni1BHFCmE

    • Remove the 6.7 mm Flathead screw using a Flathead 4 mm screwdriver.

  2. TUMtE1BgoOUBIWEc

    • Loosen the bolt that is connected to the body by hand.

  3. GGdbDGS6g1Nsoil2

    • Lift up and disconnect the bracket from the body.

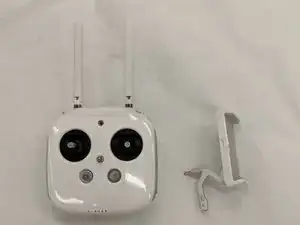

  4. bycCxdLBEmNCvlEy

    • Replace the mobile device holder with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
