DJI Phantom H3-2D GoPro Camera Installation

Geschrieben von: David Hoyt

Kommentare: 2

DJI Phantom H3-2D GoPro Camera Installation

Schwierigkeitsgrad

Very easy

Schritte

Zeitaufwand

5 Minuten

Einleitung

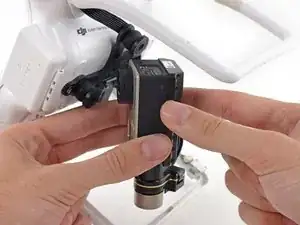

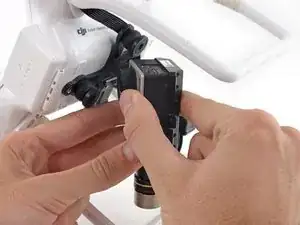

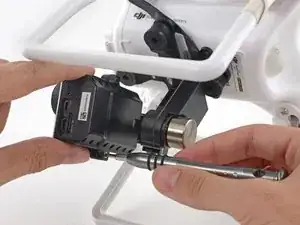

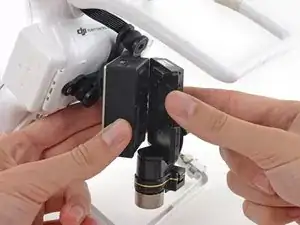

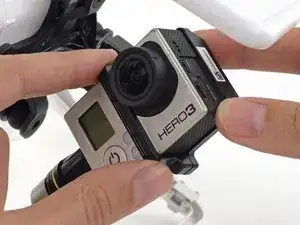

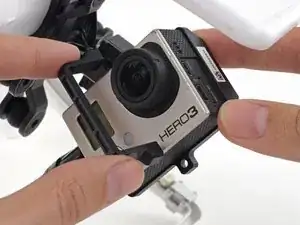

Follow this guide to correctly install a GoPro 3/3+/4 camera onto the H3-2D gimbal on a DJI Phantom.

Werkzeuge

Schritt 1

Press down on battery door release tab to flip the battery door open.

Schritt 2

Pull out the battery pack.
Avoid pulling on the battery wires, excess stress may break the wires, damage the power connectors, or crack the internal solder joints.

Schritt 3

Pull the two halves of the XT60 power connector apart.
It's a tight fit, so be careful not to hit your drone or yank on the cables when it releases!

Schritt 4

Silver-topped propeller collets unscrew counter-clockwise
Black-topped propeller collets unscrew clockwise

Schritt 5

For propellors with silver collets: Use a 12 mm wrench or socket to loosen silver collets in the counter-clockwise direction.
Once free, unscrew and remove the collet.

Schritt 6

For propellors with black collets: Use a 12 mm wrench or socket to loosen black collets in the clockwise direction.
Once free, unscrew and remove the collet.

Schritt 7

Gently press down the motor shaft and lift the propeller up to remove it.

Schritt 8

After removing all four propellors, flip the drone over.
Remove the following screws from the underside of the drone:
Twelve 2.0 mm hex screws
Four Phillips #0 screws

Schritt 9

Loosen the cable from the plastic landing gear.
Unplug the magnetometer molex connector.

Schritt 10

Lift up on the top portion of the shell and set it on its side.
Do not attempt to fully remove the case. The GPS and Magnetometer cables connect the top shell to the rest of the Phantom, be careful not to stress or break these cables.

Schritt 11

Lift the GPS cable molex connector up out of its socket on the main board.

On the Phantom FCP40 (essentially a Phantom 1), the GPS cable connects directly to the Naza controller box, not to the board as shown here. Also the compass (magnetometer) is connected to the main board, not the GPS unit in the top shell, so you don't need to remove it to remove the top shell.

Marcus Bointon - 26/02/15

Schritt 12

Gently pull the slack of the magnetometer cable through the case bottom shell.
The case top shell should now have enough slack to work on the interior of the Phantom.

Schritt 13

Twist the molex and cable as shown to prepare it for insertion through the case bottom shell.

Schritt 14

Insert the molex connector through one of the landing gear holes and case bottom shell.
Pull the cable through.
This is a really tight fit, take your time and avoid damaging the molex connector or cable. We found that gently rocking the molex connector back and forth through the hole eventually wiggled it through.

Schritt 15

Place the H3-2D mounting bracket on the bottom side of the Phantom.
Line up the mounting holes and screw in the two bolts to secure the mounting bracket.

Schritt 16

Twist the other end of the G8 cable molex connector as shown in order to plug in the H3-2D gimbal.

Schritt 17

Pass the G8 molex connector through the side of the H3-2D gimbal.
Plug in and firmly secure the connector.

Schritt 18

Pull the gimbal wire through the case bottom shell and plug in the connector to the G8 plug on the mainboard.

Schritt 19

Place the gimbal on the mount with the front facing the same side as the battery cover.

Schritt 20

Mount the four rubber dampers on the gimbal to the mounting bracket.
Pinch two sides of the rubber dampers and press it into the mounting bracket holes.

Schritt 21

Confirm the dampers are installed correctly by twisting them at least 180 degrees.
If a damper unmounts, it was not installed correctly. Repeat the previous step for any unmounted dampers.
