DKnight MagicBox II Motherboard Replacement

Geschrieben von: Anthony
  • Kommentare: 19
DKnight MagicBox II Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

In this guide we will show you a step-by-step replacement guide for the Motherboard. You want to be careful when unplugging the speakers and battery from the board itself in order to not damage any of the wires.

The motherboard contains the following components:

Power Switch

Bluetooth sensor

Auxiliary port

Charging Port

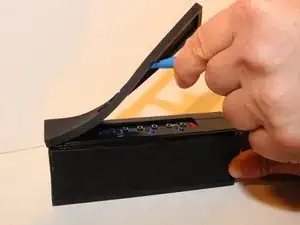

  1. ZFCJHLhtGZRsOLbD
    ZFCJHLhtGZRsOLbD
    iuIpUNaZodMZysZ5

    • Using Blue Plastic opening tool pry the top rubber cover, then using the same tool remove the bottom panel

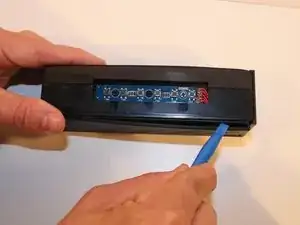

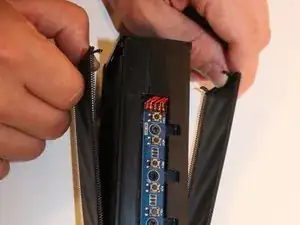

  2. h6He1n1uvdypyZrR
    h6He1n1uvdypyZrR
    4dCFUnKJhGOgCWi3
    gtvrNUkm4gHijCVg

    • There are four prongs on the grill in the corners, closest to the power button switch. Use the plastic opening tool to release all four prongs from the panel, and then slide the plastic opening tool along the edge of the grill to allow it to easily slide off.

  3. G5w5hUKBbwG6K5qg
    G5w5hUKBbwG6K5qg
    TgxAWv3PVf4Yjvmj

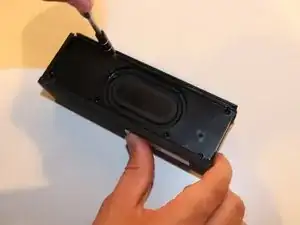

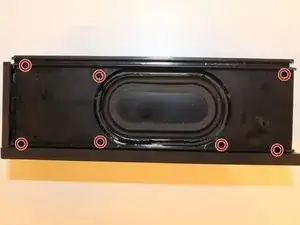

    • On the back panel (Opposite to the side containing the two speakers), Use the Philips head PH1 to remove all 7 screws (Screws: Head PH1 , Length 7cm).

  4. daTHX1EcTjV4Bkxg
    daTHX1EcTjV4Bkxg
    TFpCaAqRJrPcdBY4

    • Pull apart the two faces to separate the back panel from the front face plate.

  5. njMMuMyiS35v4KSi
    njMMuMyiS35v4KSi
    6MLSwSiTDwH1VnIY

    • Remove the single screw holding the motherboard to the front panel (Screw : Head PH1, Size .5 cm)

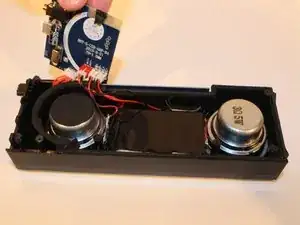

  6. QAGayqWK2nxRyIWO

    • Using your fingers gently pry the motherboard loose from the black insulant adhesive

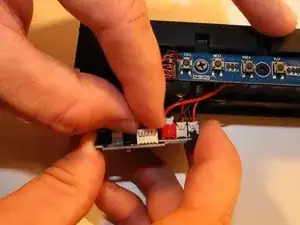

  7. SNUJSJD2dN1xFooT

    • Disconnect the Button Panel plug (Largest of the Plugs, it can be traced back to the button panel easily)

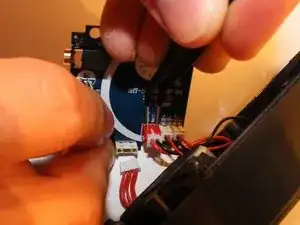

  8. UhUWrjoXIBT5lZYE

    • Use the tweezers to push down on the safety prongs on the plastic switch. Then Disconnect the Power Wire plug by hand (Red medium),

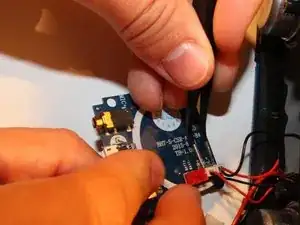

  9. FXYNcgVHwoFHZimW

    • Use the tweezers to push down on the two safety prongs on the plastic switch. Then Disconnect the two Speaker plug connections by hand (Two Smaller Plugs)

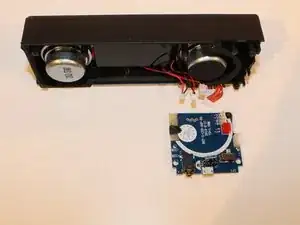

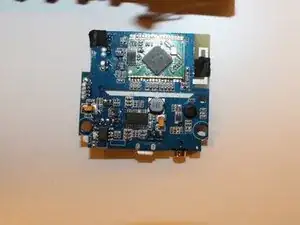

  10. xGXjrsVXZp2vqojQ
    xGXjrsVXZp2vqojQ
    PkIEEpfDbjLdIL1o

    • The Motherboard is now free from the speaker assembly

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Anthony

Mitglied seit: 04/02/16

695 Reputation

19 Kommentare

Where can I buy a replacement DKnight MagicBox II Motherboard ?

Francis Garvey -

My Charge Port is not working, do I need to replace the Motherboard or is there a fix for the charge port? Verified that the cable is good. It use to work if I wiggled and applied pressure to one side. Verified port is clean.

Michael Stills -

Where do you get the replacement motherboard?!

Tracie Yang -

I did the steps and the power still won't turn on. The blue light will turn on for a blink then nothing

rachelharris0528 -

mine is doing same thing. DKnight said they wont do anything because i bought it off Ebay and not Amazon.

Peter Tavella -

Same thing the blue light comes on for a second then goes out, my original problem was that it took a long time to turn on, then I sprayed contact cleaner on it to make it work better but now it only turns on for a second, I thought contact cleaner would help the switch not hurt it. Does anybody else have the same problem and also where do I get the motherboard ?!

Leo -

I was shipped a broken item and already disassembled the motherboard but I cannot find a replacement motherboard anywhere online. Did anyone manage to find one?

Cao Light (Caolite) -

Where do you get the replacement motherboard?!

Jim Shephard -

Thanks for the disassembly instructions. I was able to fix my power switch by cleaning the contacts with some electrical contact cleaner. After I pulled the two halfs of the case open in step 4 I could spray the switch with some contact cleaner and it worked like a charm.

My original problem was that the power would randomly turn off and had a difficult time turning the unit on. I had to play with the switch toggle it on and off and sometimes it would work. The switch contacts were dirty and all it needed was some cleaning of the contacts.

Wilton -

I have same problem as Wilton of not powering the unit and I have to struggle with the power button until it can turn on. for me I cleaned all contacts but problem remains. Where can I get the board? That power button switch it very very cheap.

Javier Gonzalez -

I had a problem with a “cold soldering joint” on the board causing problems with charging. When the Micro USB charging cable was moved, this cause movement of the port and the circuit board and allowed the “cold soldering joint” to “disconnect.” I was able to clearly see the steps to safely disassemble the unit, gain access to the circuit board, and re-solder the faulty joint. Thank so much for the help!!!

rogerduke52 -

I also would like to know where to get a new motherboard as the USB charging port is now defective.

jim.mapel -

I fixed mine by moving the on/off switch rapidly to clean the contacts without opening up the case and it came back to life. Before the power switch wasn’t doing anything and I couldn’t turn on the speaker anymore.

teddytwong -

What is Dknight's battery type, and what is motherboard type ? I'm from Brazil and there is no IFIXIT store here

hugo.gabriel.lima -

The power switch do not work anymore. Is there a replacement available on the market for my MagicBox DKinigth v2 motherboard?

(motherboard # BHT-S-CSR-AHF-B4)

joaomvianna -

Where can I buy a replacement DKnight MagicBox II Motherboard ?

brianyu200511 -

Where can get a replacement DKnight MagicBox II Motherboard ?

brianyu200511 -

can I buy a replacement DKnight MagicBox II Motherboard ?

brianyu200511 -

Excellent tutorial. Thanks mate. Got her going again in no time…Stonking!

Andy -
