DOSS SoundBox Base-plate Removal Replacement

Geschrieben von: Brendan Harkreader
  • Kommentare: 0
DOSS SoundBox Base-plate Removal Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. NdJabSHE35ZvcZd3
    NdJabSHE35ZvcZd3
    uqJYbGBcd6cjgNJB
    AyarZpvPLe1O3w2A

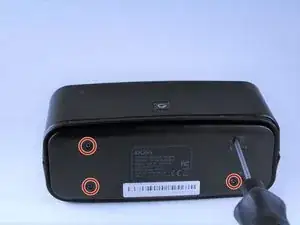

    • Locate the four 3/32" screws on the bottom of your device.

    • Using a JIS #00 screwdriver, remove the four 3/32" screws.

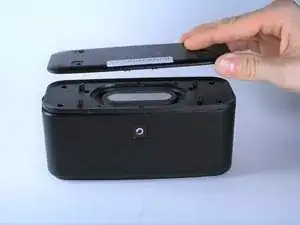

    • After removing the screws, lift the cover off of the device.

  2. Rvh6rlsnarOSAWKc

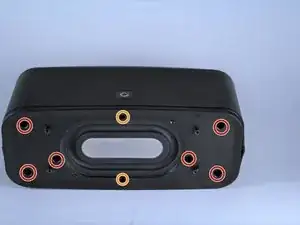

    • Using a JIS #1 screwdriver, remove the six 3/32" screws that attach the base-plate to the speaker enclosure. These screws are marked with red circles.

    • Using a JIS #000 screwdriver, remove the two 1/16" screws from the areas marked with an orange circle.

    • Having the magnetic pad handy will be beneficial, as these screws are very small and easily lost.

  3. DVXVwqP4pjQOoR1u

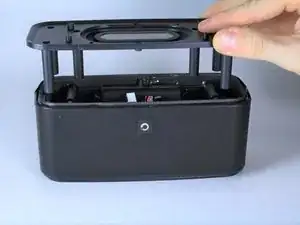

    • Lift the base-plate off of the enclosure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
