DROCON Ninja Casing Replacement

Geschrieben von: Taylor Ullmann

Kommentare: 5

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will help you replace the casing on the DROCON Ninja DC-014. The carbon fiber casing provides support to the drone during flight. The casing might need to be replaced if the power button isn’t functioning or the frame is cracked. For this guide, you will need a Phillips 00 screwdriver and an opening tool. There are no difficult steps required for this guide.

Werkzeuge

Schritt 1

Make sure the drone is powered off before beginning the battery replacement.
To turn the drone off, press and hold the black button on the top of the drone until all lights are off.
Firmly grasp the battery tab between your thumb and index finger.
Pull the battery away from the drone's body

Great work with the action shot and writing clearly here, but notice that you’re taking the shots as if you’re watching, not from first-person perspective.

Alex Watkins - 25/02/20

Schritt 2

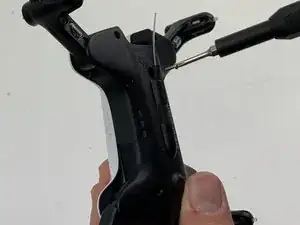

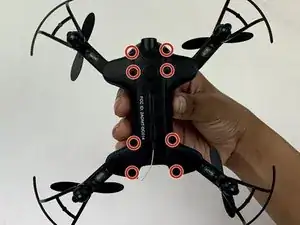

Using a Phillips #00 Screwdriver remove the eight 4mm screws on the bottom of the drone.

Add screw length measurements to all guides.

Alex Watkins - 24/02/20

Also, be sure to use a red bullet to coincide with red markup.

Alex Watkins - 25/02/20

Schritt 3

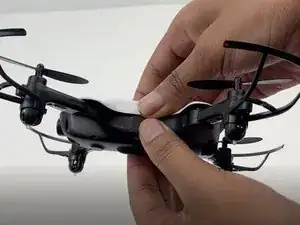

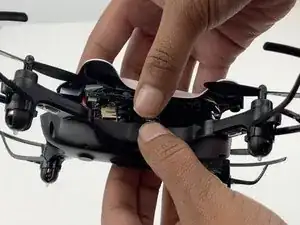

Gently pull white casing away from the black bottom casing

It looks like you’re kind of wedging your fingers between the two pieces. Is that correct? If so, add that detail here. If it’s just really gently pulling, then keep as is.

Alex Watkins - 25/02/20

Schritt 4

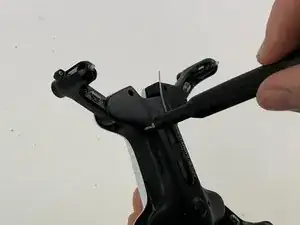

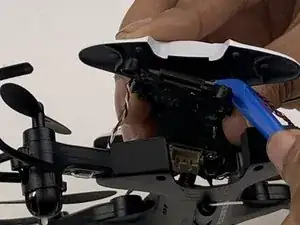

Insert the opening tool under one of the black plastic connector slots that connects the circuit-board to the casing.
Gently pull the opening tool toward you to disconnect the circuit-board from the plastic casing.

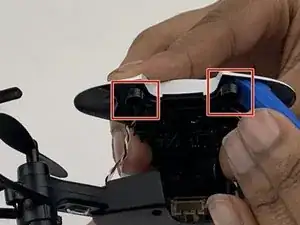

What is the red markup for? Note that circular markup is only for screws. Also, for the wires, how can they tell if they are in the appropriate slots?

Alex Watkins - 25/02/20
