Einleitung

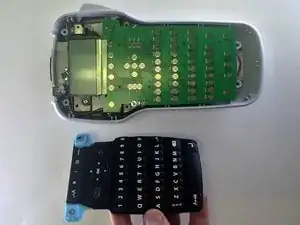

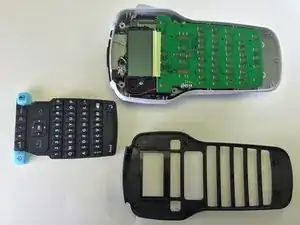

If the DYMO LabelManager 160's keys are unresponsive, you may need to replace the keypad. This guide provides the replacement steps.
Ersatzteile
-
-

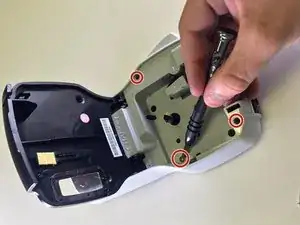

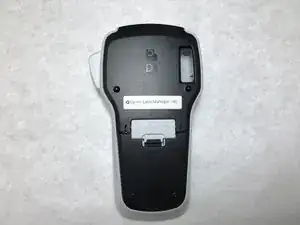

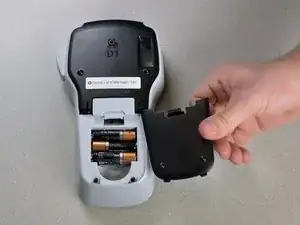

Using a Phillips #0 screwdriver, remove the four 1.3mm screws from the cartridge compartment and two 1.2mm screws from the battery compartment.
-
-
-

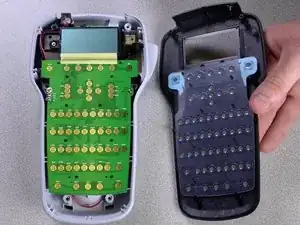

Using a spudger or other tool, lift and remove the front of the device. This should be done all around the device to ensure the two parts split correctly.
-
To reassemble your device, follow these instructions in reverse order.
