DYMO LabelPOINT 100 Cutting Blade Replacement

Geschrieben von: Dustin Holifer
  • Kommentare: 2
DYMO LabelPOINT 100 Cutting Blade Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. SYfjwcePrhaWTffp
    SYfjwcePrhaWTffp
    nqjVxjM6I2iAE2Fi
    jS4MYFXApbFS2KEE

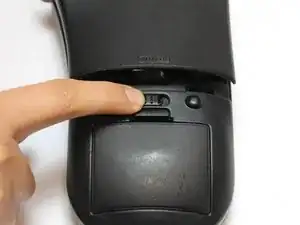

    • Slide the panel release button.

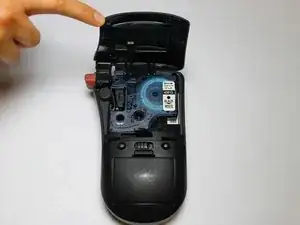

    • Lift the panel.

  2. XVxereJTFN5NoXyM
    XVxereJTFN5NoXyM
    Hor5OkMVBV2gkyDW

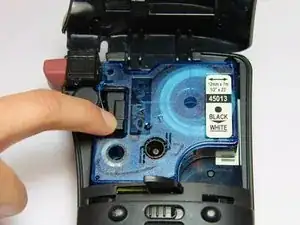

    • Firmly press the cartridge release button with your finger.

    • You may need to hold the cassette and/or entire device still while pressing the button.

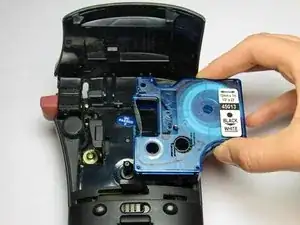

    • Lift the label tape cassette out of the device.

  3. FXylH5rI1npEFUVo
    FXylH5rI1npEFUVo
    WehtTLisSAhm4COL
    HwuoWGhUUCProUZi

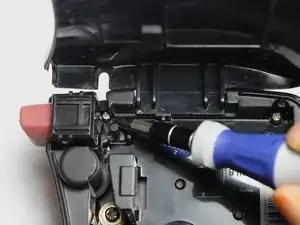

    • Use Phillips #00 Screwdriver to disengage cutter from device

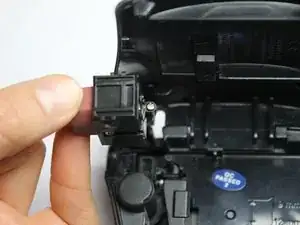

    • Remove cutter

  4. aKZJxp3owTbWVPMP
    aKZJxp3owTbWVPMP
    eRXUejOwHgiEEvdJ
    nVTVKZqyLgnC1nBx

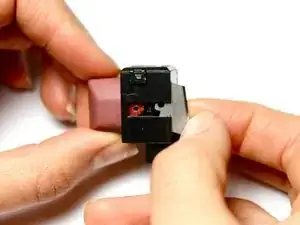

    • Use Phillips #00 screw to unscrew blade from blade cutter

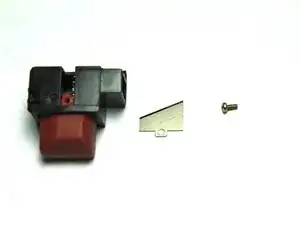

    • Carefully remove blade. The blade is sharp and can be dangerous if not handled properly.

    • Replace blade

    Great. But I can't find the blade ! Impossible to buy a new one :(

    Gilles -

Abschluss

To reassemble your device, follow these instructions in reverse order.
