DYMO LabelPOINT 100 Keypad Replacement

Geschrieben von: Mike Dam
  • Kommentare: 0
DYMO LabelPOINT 100 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

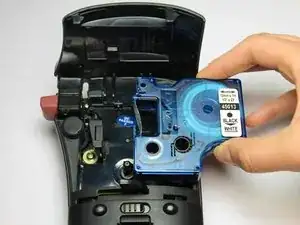

  1. 5QbjAvYYI3PLanZA

  2. GQVkAuxSEyFHSW5P
    GQVkAuxSEyFHSW5P
    auJjf6IGGmGm4OLY

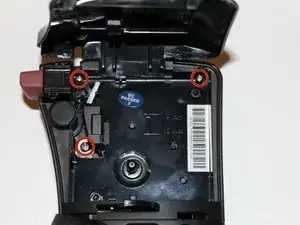

    • Use Phillips #00 Screwdriver to remove the three screws that hold the upper portion of the access panel.

    • Remove the blade cutter assembly.

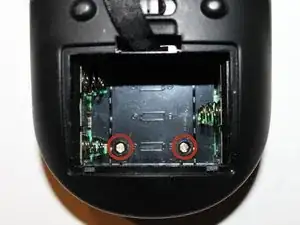

    • Use Phillips #00 Screwdriver to remove the last two screws located in the battery panel that holds the bottom portion of the access panel.

  3. lpqIGbOlDjMUNrpP

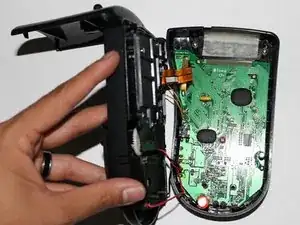

    • Gently remove the access panel from the right side of the device.

    • Some electrical wiring will be exposed and will not detach. Be careful not to damage any electrical wiring when removing access panel.

  4. kKWygQcddGcxOcgq
    kKWygQcddGcxOcgq
    C6SCd1MsdPo5sEcQ

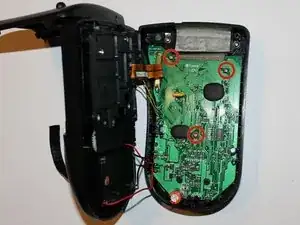

    • Use Phillips #00 Screwdriver to remove three screws that hold down the circuit board.

    • Gently lift the bottom of the circuit board, revealing the keypad.

    • Be careful not to damage any components on the circuit board when disassembling.

  5. EbJYKjO5YgtORINQ

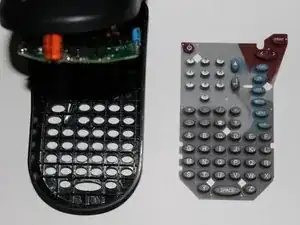

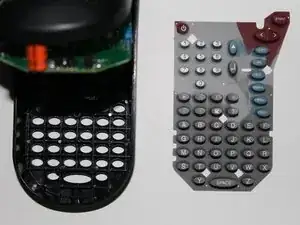

    • Remove the keypad from the front facing cover

    • When installing the new keypad, make sure all buttons are correctly set in each hole so that each button can be pressed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
