DYMO LabelPOINT 100 Rubber Transport Roller Replacement

Geschrieben von: Deborah Canas
  • Kommentare: 0
DYMO LabelPOINT 100 Rubber Transport Roller Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. SYfjwcePrhaWTffp
    SYfjwcePrhaWTffp
    nqjVxjM6I2iAE2Fi
    jS4MYFXApbFS2KEE

    • Slide the panel release button.

    • Lift the panel.

  2. XVxereJTFN5NoXyM
    XVxereJTFN5NoXyM
    Hor5OkMVBV2gkyDW

    • Firmly press the cartridge release button with your finger.

    • You may need to hold the cassette and/or entire device still while pressing the button.

    • Lift the label tape cassette out of the device.

  3. AIMYNxxsDgrBKHdF
    AIMYNxxsDgrBKHdF
    bSD5DG4qtjBQy2MT
    bH6SB1pKJKXQ615a

    • Use Phillips #00 screwdriver to remove three screws

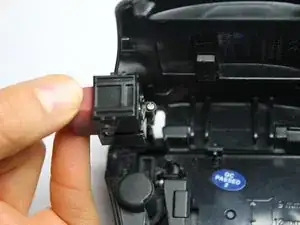

    • Remove blade cutter

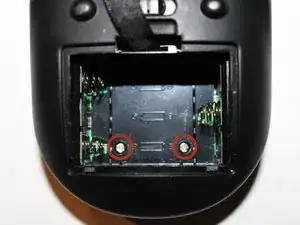

    • Use Phillips #00 screwdriver to remove remaining two screws from the battery compartment

  4. CpGvLDGhwawUKfOZ
    CpGvLDGhwawUKfOZ
    ia2XT4xZkYIjvKTH

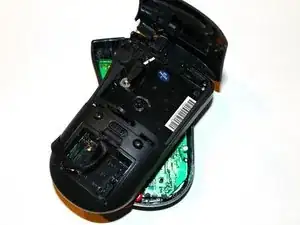

    • Gently pull the access panel up to separate from the device

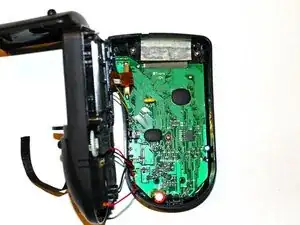

    • Some electrical wiring will be exposed and will not detach. Be careful not to damage any electrical wiring when removing access panel.

  5. 3qOGRcLUQBeAULQf
    3qOGRcLUQBeAULQf
    wVkVfhCKkyTxXBbI
    WIddJQ1Wq64RgZ4B

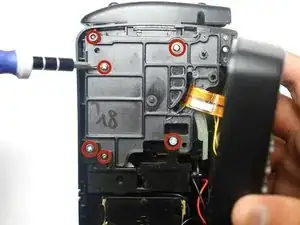

    • Use Phillips #00 screwdriver to remove six screws

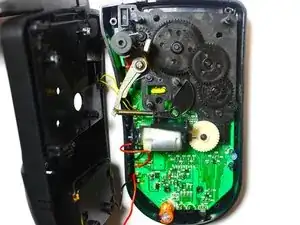

    • Slowly separate back panel

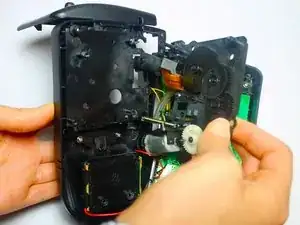

    • Gears attached to the back panel are not secured and have a tendency to fall out. This will cause difficulty when reassembling

  6. usNVp6uRhYF2AOKX
    usNVp6uRhYF2AOKX
    cfqki1gkkWTibmWe

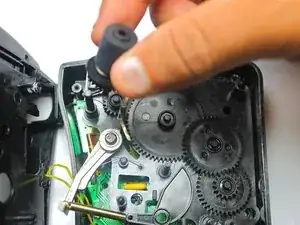

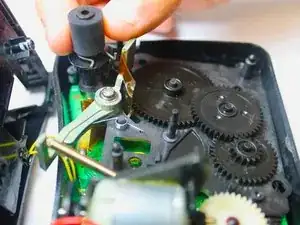

    • Gently pull rubber transport roller up to remove

    • Replace rubber transport roller

Abschluss

To reassemble your device, follow these instructions in reverse order.
