DeWALT Hammer Drill DW511 Chuck Replacement

Geschrieben von: Andrew Grayson Crawford
  • Kommentare: 0
DeWALT Hammer Drill DW511 Chuck Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. Yk1QfXgS5TsnvlVC
    Yk1QfXgS5TsnvlVC
    dyTtQiN6cLJ1Tdsb
    BHu5xxJAemIGMpXS

    • Remove two 45 mm T20 Torx screws.

    • Remove one 30 mm T20 Torx screw.

  2. K6eLMnqHvNODKZls

    • Pull off the top case and set it aside.

  3. YOasscaXxlHeVfWT
    YOasscaXxlHeVfWT
    lUuKZgRdhNZbaYpb
    TmmQfNRLqcSjLQPb

    • Grab the gear case cover and gently pull it out just enough to where it exposes the lever assembly.

    • It is important that the brushes are removed before you do this step or you may damage your brushes.

    • The lever assembly can now be lifted out.

  4. 1x14MXgRncgPgUV2

    • With the old lever assembly removed you can now replace it with a new one.

  5. MEehWIQTJRE6nb4k
    MEehWIQTJRE6nb4k
    BBogdBntRwGEOJGK
    ZEBuAMvOZBsBmAfW

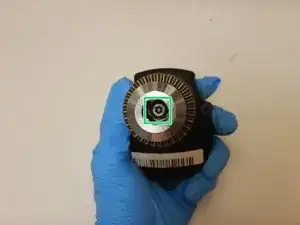

    • Gently separate the chuck and plastic housing from the hammer drill body.

    • The removal of the screw from the chuck to separate the plastic housing requires hand strength and specialized tools.

    • The plastic housing is prone to damage if excessive force is applied during the replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
