DeWalt D28110 Brush and Spring Replacement

Geschrieben von: Kean Wee
  • Kommentare: 0
DeWalt D28110 Brush and Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will walk you through replacing the brush and spring components of the grinder. These are both located at the base of the brush motor and can be easily replaced.

Werkzeuge

  1. yk6cLV1GvMwSpPKt

    • Using the T-15 screwdriver, remove the four 22-mm torx screws holding the back panel in place.

    • Unplug the grinder before any disassembly.

  2. CYZJCMyBYb2URwWQ

    • Use the edge of the spudger to loosen and remove the back panel.

  3. PLZAr4uLEpTJuGXf

    • Remove the single 20-mm torx screw holding the rear panel in place.

  4. HLHKoxSo4jLTAEJB

    • Pull back the rear side of the back panel.

  5. FZ2T6SHouoZgqDbn
    FZ2T6SHouoZgqDbn

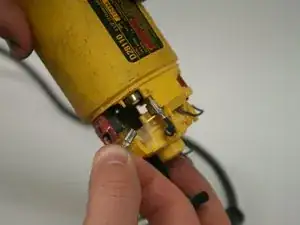

    lUmNTcNdZEuqJion

    • Gently pull to disconnect brush connector.

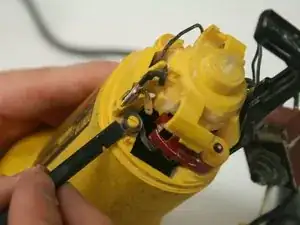

  6. MIKbBV54ANqkI3Gq
    MIKbBV54ANqkI3Gq

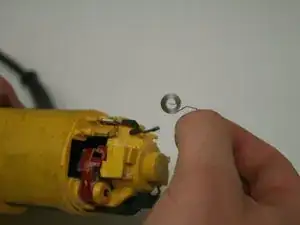

    qJNvchURNjBBAAGZ

    • Use the edge of the spudger to slide the spring off its post.

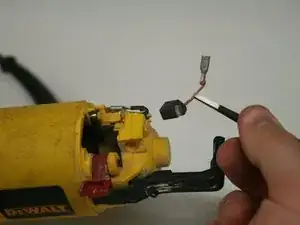

  7. t3ewEvPYPTU6ebde

    • Use tweezers to gently remove the brush and cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
