DeWalt D28110 Pinion Replacement

Geschrieben von: Will Young
  • Kommentare: 0
DeWalt D28110 Pinion Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

In this guide you will take apart the pinion "head" of the grinder to gain access to components in the gear case.

  1. W4Gkk1TRDcGvl2GR

    • Using the T-15 screwdriver, remove the four 22-mm torx screws on the gear case.

    • Unplug the grinder before any disassembly.

  2. 4uXa4r2BwTOBWFkB
    4uXa4r2BwTOBWFkB
    MMLr4h6Gi42oVWYf

    • Pull out the gear case.

  3. dTRVy2TBQ6OHRe5w
    dTRVy2TBQ6OHRe5w
    hqr2WJSkRkqlKZBF

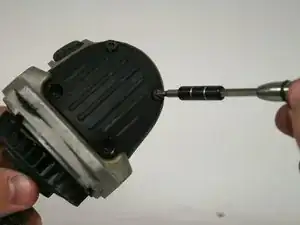

    • Using the T-15 screwdriver, remove the four torx screws.

  4. Xt4aMlqeqQeC1oxP

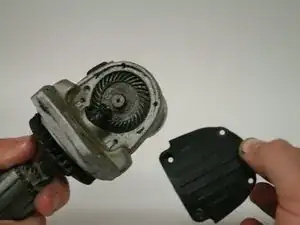

    • Remove the gear case cover from the gear case.

  5. 3aMWXiHxgTtwmalI
    3aMWXiHxgTtwmalI
    hUficU4NA6uHaMjE
    KV5LYaGwDvlpiqw5

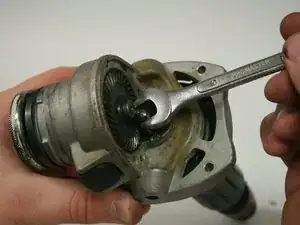

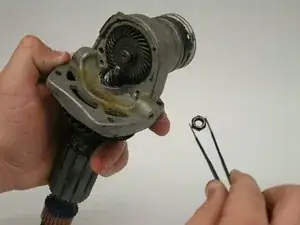

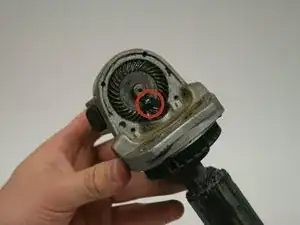

    • Using a 10-mm wrench, remove the hex nut by rotating counter-clockwise.

  6. BRGKYsBLkIGdFqft
    BRGKYsBLkIGdFqft
    Qqd4j26oPCMhynbH

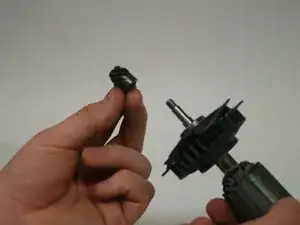

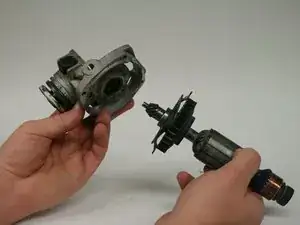

    • Remove the armature assembly from the gear case.

    • Remove the pinion from the armature assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
