DeWalt D28110 Power Cord Replacement

Geschrieben von: Andrew
  • Kommentare: 0
DeWalt D28110 Power Cord Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will take you through removing the back panel assembly and disconnecting the power cable from the inner electric components.

  1. yk6cLV1GvMwSpPKt

    • Using the T-15 screwdriver, remove the four 22-mm torx screws holding the back panel in place.

    • Unplug the grinder before any disassembly.

  2. CYZJCMyBYb2URwWQ

    • Use the edge of the spudger to loosen and remove the back panel.

  3. PLZAr4uLEpTJuGXf

    • Remove the single 20-mm torx screw holding the rear panel in place.

  4. HLHKoxSo4jLTAEJB

    • Pull back the rear side of the back panel.

  5. yuEgBNIXKtHk6mwb
    yuEgBNIXKtHk6mwb
    4q2VNfHiPlDChXkc
    46MmHcoyrLAhQcxD

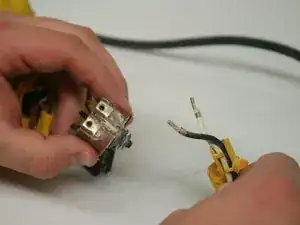

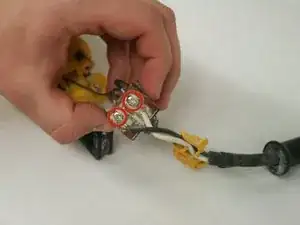

    • Locate the red switch box.

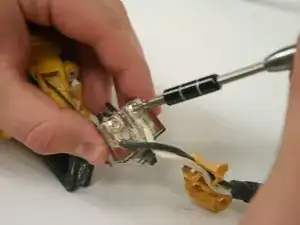

    • Using the J-10 screwdriver, unscrew the screws and detach the wires.

    • Be sure to remember under which screw the "ground" wire (black) goes.

  6. SmnTjSAj1mjIJnrF

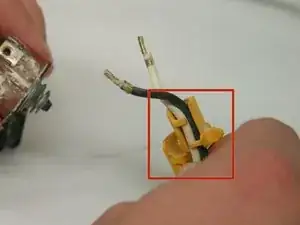

    • Unthread the two wires from the power cord clamp.

Abschluss

To reassemble your device, follow these instructions in reverse order.
