DeWalt D28110 Power Switch Replacement

Geschrieben von: Kean Wee
  • Kommentare: 1
DeWalt D28110 Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

The power switch is the combination of two pieces working together, the mechanical switch and the electronic switch. If the switch is problematic, you may want to replace one or both of these components.

  1. W4Gkk1TRDcGvl2GR

    • Using the T-15 screwdriver, remove the four 22-mm torx screws on the gear case.

    • Unplug the grinder before any disassembly.

  2. 4uXa4r2BwTOBWFkB
    4uXa4r2BwTOBWFkB
    MMLr4h6Gi42oVWYf

    • Pull out the gear case.

  3. yk6cLV1GvMwSpPKt

    • Using the T-15 screwdriver, remove the four 22-mm torx screws holding the back panel in place.

    • Unplug the grinder before any disassembly.

  4. CYZJCMyBYb2URwWQ

    • Use the edge of the spudger to loosen and remove the back panel.

  5. PLZAr4uLEpTJuGXf

    • Remove the single 20-mm torx screw holding the rear panel in place.

  6. HLHKoxSo4jLTAEJB

    • Pull back the rear side of the back panel.

  7. R3vuEsRWSrA5yeAI
    R3vuEsRWSrA5yeAI
    OKyUYOtrebVN1VHp
    GGMMIqUuOflIJHAf

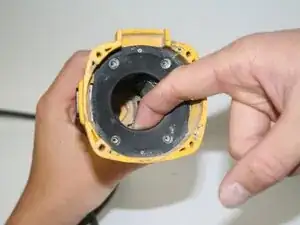

    • There is an inner plastic guard behind the motor shaft.

    • Unscrew the four screws at each corner.

    • The guard should pull out with a good firm tug.

  8. FnvCTRPle1DKhkgu
    FnvCTRPle1DKhkgu
    iTUttlVQyGeSoSio
    dQF2kpdggLqRpxgg

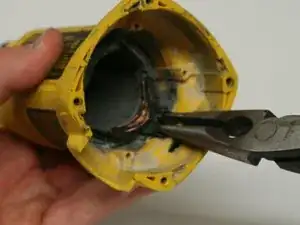

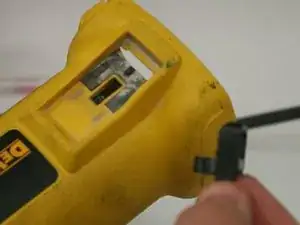

    • Just behind the inner guard is the button slide.

    • Use needle nose pliers to pinch and push the button's flanges together, and out of the slot.

  9. InL1BU3drHNCPKO6
    InL1BU3drHNCPKO6
    MuRcafnG5NBbXU5n
    tPtTdsqXyOdpByG2

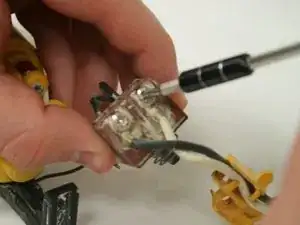

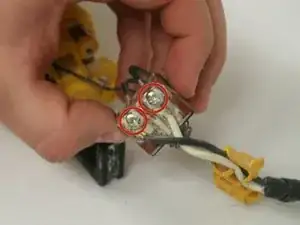

    • Using the J-1 screwdriver, unscrew the power cord wires from the red switch box (located in the back of the grinder).

  10. KXPbUrRDKUNJZKkr
    KXPbUrRDKUNJZKkr
    bZSIAhKWBNWuyFim

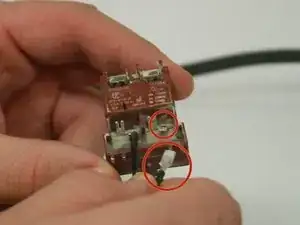

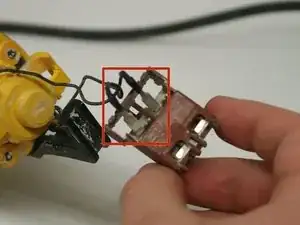

    • Disconnect the motor wires from the other side of the switch box.

    • They wires are connected as a sleeve to the flat pin out of the switch box. A firm pull should do it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
