DeWalt DC970 Battery Cells Replacement

Geschrieben von: Jonathan Hamel
  • Kommentare: 0
DeWalt DC970 Battery Cells Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

If the battery of your drill is not giving the drill power, a problem you could have is deteriorated battery cells. This guide will show you how to replace the battery cells.

  1. iFAWbJDnhLhVdAlL

    • Compress the buttons on either side of the battery and lift the drill away from battery.

  2. rtlRZBdsGVSNifqH

    • Remove battery from drill.

  3. 1yFQgoCLklVkMLMq
    1yFQgoCLklVkMLMq
    j2SwsRxOadaHVxHK

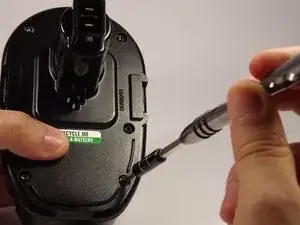

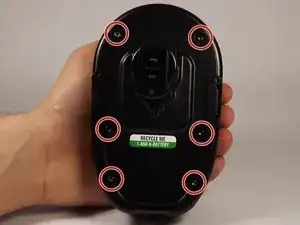

    • Remove the six 19 mm, Torx Security 15 screws from the top of the battery.

  4. wtqJee2kT5pJAiHn

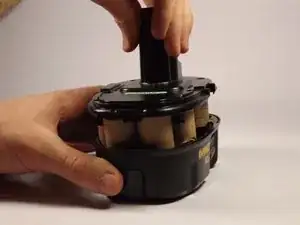

    • Pull off the battery cover, exposing the battery cells.

    • Be careful to not damage the batteries, if damaged they may explode.

  5. RxVhEiSRuEfcRFkv
    RxVhEiSRuEfcRFkv
    nO6LZafmSXHQJNPw
    SYVnevrSfNwR6JC2

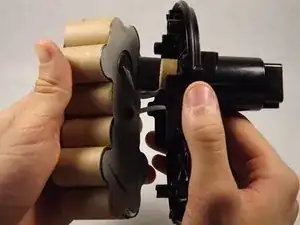

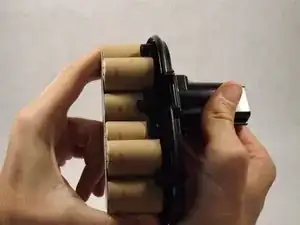

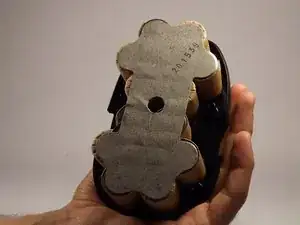

    • Remove the old battery cells by slowly pulling them out of the top piece of the battery.

    • The best is to recycle the old battery cells.

Abschluss

To reassemble your device, follow these instructions in reverse order.
