DeWalt DC970 Battery Fuse Replacement

Geschrieben von: Antonia Thomas
  • Kommentare: 1
DeWalt DC970 Battery Fuse Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

If you realize your battery charger for your drill is not charging, there may be a blown fuse which can be replaced by following this guide.

  1. KUrEAqgNCpQHcKvc
    KUrEAqgNCpQHcKvc
    vtYDOCGFFSLfuRwP

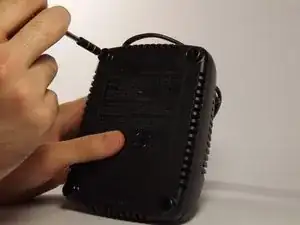

    • Remove the four 13 mm, Torx Security #15 screws found on the bottom of the charger.

  2. Z3C1xhCvJS2EfFhW
    Z3C1xhCvJS2EfFhW
    ikLKANQMZOtZlSQL

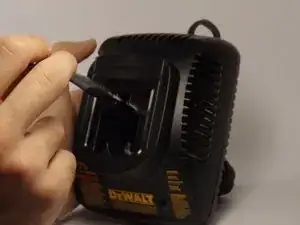

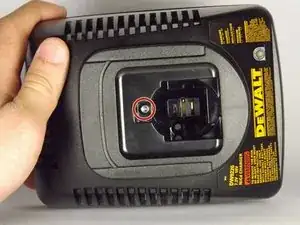

    • Remove the 19 mm, Torx Security #10 screw found in the charger port.

    • Then pull the top of the charger off separating it from the bottom.

  3. LCwFtLw2gA1FQMeD

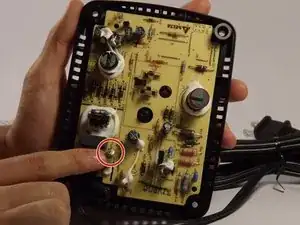

    • Locate the fuse and pull it out with two fingers.

    • Once you have located the fuse, if you have the replacement fuse just pull the old one out and put the new one in.

    • Replacement fuses can be found in hardware stores.

Abschluss

To reassemble your device, follow these instructions in reverse order.
