DeWalt DC970 Forward/Reverse switch Replacement

Geschrieben von: jake
  • Kommentare: 0
DeWalt DC970 Forward/Reverse switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will teach you how to properly replace your forward/reverse switch for this device.

  1. iFAWbJDnhLhVdAlL

    • Compress the buttons on either side of the battery and lift the drill away from battery.

  2. rtlRZBdsGVSNifqH

    • Remove battery from drill.

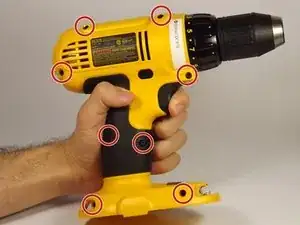

  3. FshZipNC1Ae5umqy
    FshZipNC1Ae5umqy

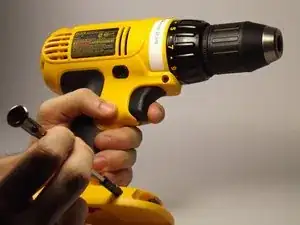

    YYjY4mpiI4TYpser

    • Remove the eight 16 mm, Torx Security #15 screws.

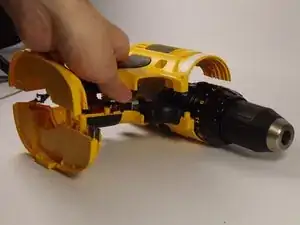

  4. RGX65BULtpBxULxV

    • Lay the drill on its side and gently lift the top half off it.

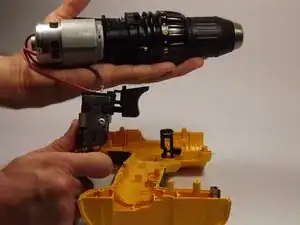

  5. MgKXuvBGxUixTR4k

    • Remove the drill mechanism from the shell.

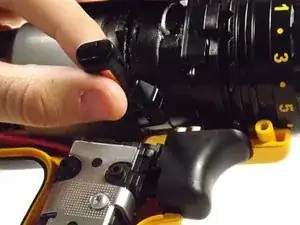

  6. x5FIGrcPwOVBCuIy
    x5FIGrcPwOVBCuIy

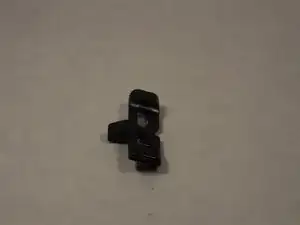

    gTmGpZVNpcKnuj54

    • Disconnect the forward/reverse switch from the trigger by pulling the mechanism out and leaving the switch in the frame.

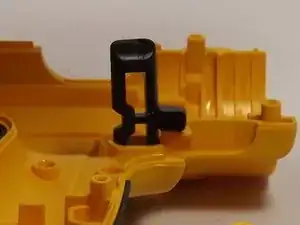

    • To replace just pull the switch out and put the new one in the opening.

Abschluss

To reassemble your device, follow these instructions in reverse order.
