DeWalt DCS380 Blade Shaft Replacement

Geschrieben von: Jonathan Hicks
  • Kommentare: 0
DeWalt DCS380 Blade Shaft Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will explain the disassembly of the shaft housing and replacement of the shaft.

  1. RRLo1dhg2PMMGtIS

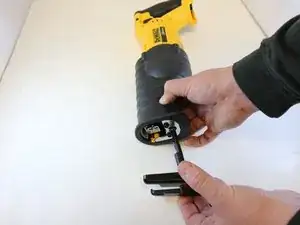

    • Remove the battery before disassembly.

    • Remove the shoe by pressing the yellow button on the left side of the hand grip.

  2. CrgwddNJNa4HqtHH
    CrgwddNJNa4HqtHH
    1RCobgBs4GMSyq3M

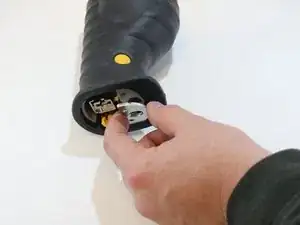

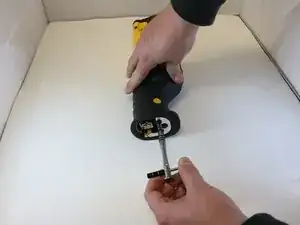

    • Remove the two M8x18mm T20 bolts from the front plate.

  3. FnRa4Fm6CqHC1Nxl

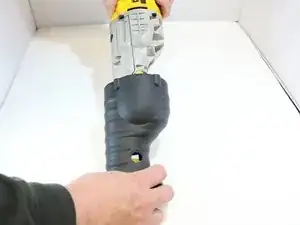

    • Pull the front of the grip while holding the saw body in place.

  4. o4M6CMKARC2CFukn
    o4M6CMKARC2CFukn
    yB5TS2bGfq4jjo66

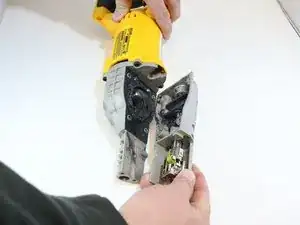

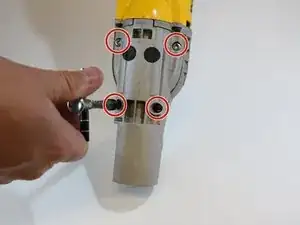

    • Remove the four M8x18mm T20 screws on the top of the gearbox.

    • Pull the top of the gearbox off and set the saw body aside.

  5. e54kBfoot4dqRDR6
    e54kBfoot4dqRDR6
    X4CIov2akBFTcHSA

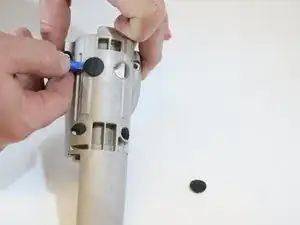

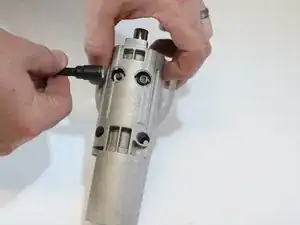

    • Remove the black plastic dust covers using the plastic pry bar.

    • Remove the two M5 lock nuts using a 5/16" socket.

  6. N5DtYuw2MFthuukc
    N5DtYuw2MFthuukc
    pUtruJBBBNHLd6GL

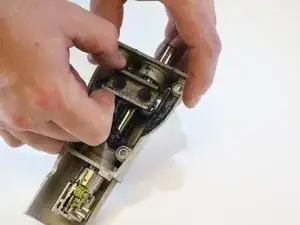

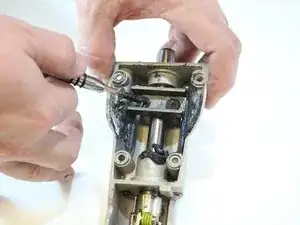

    • Turn the housing over and remove the two countersunk M5x17mm T20 bolts from the shaft yoke.

    • Remove the yoke.

  7. TQn1CiTCLKKrLPwp
    TQn1CiTCLKKrLPwp
    YGJlCUZSkZAD6HQV

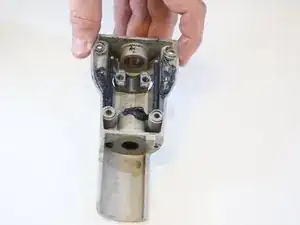

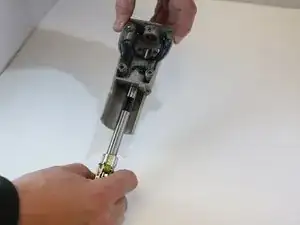

    • Pull the shaft out of the front of the housing.

    • Leave the shaft saddle in place over the holes in the cover.

    • Re-grease before re-assembly. If there are metal shavings or pieces of the broken shaft left in the gearbox make sure to remove them before re-greasing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
